Athangudi Tiles Making - Karaikudi

Making of Decorative Floor Tiles

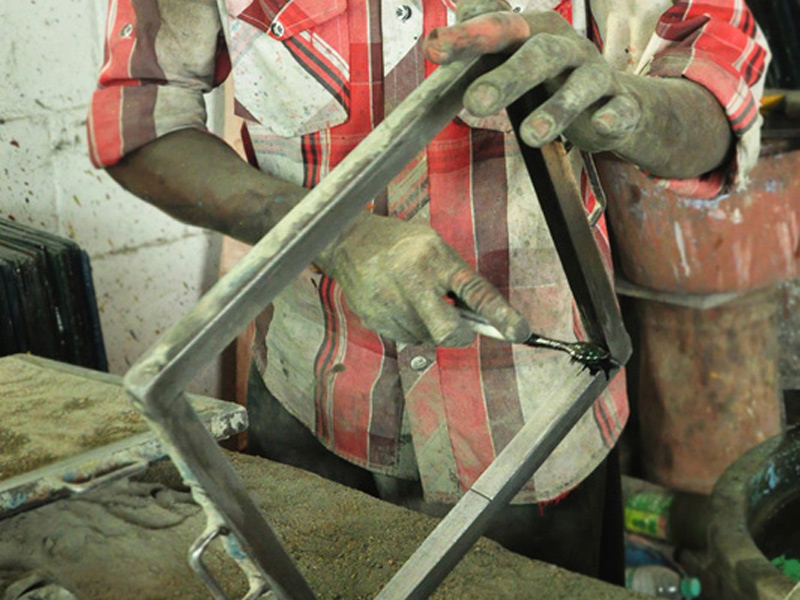

Kerosene is applied on the frame for easy removal of finished tiles

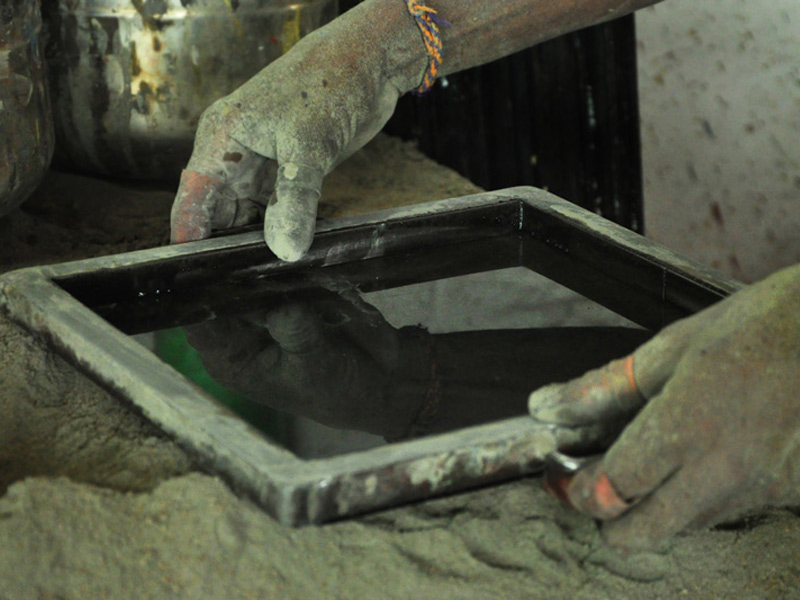

The metal border frame is placed on the glass slab which is used as the base for the tile

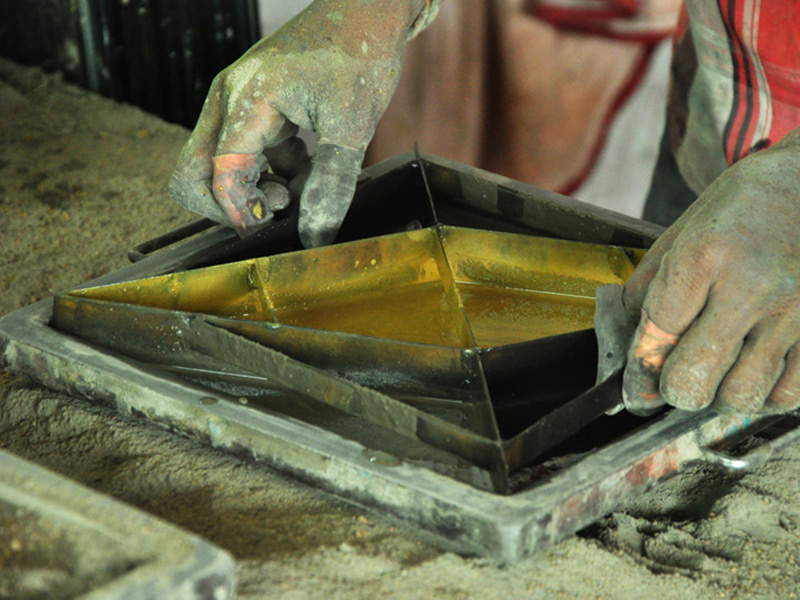

Design frame is placed on the glass slab to make the design

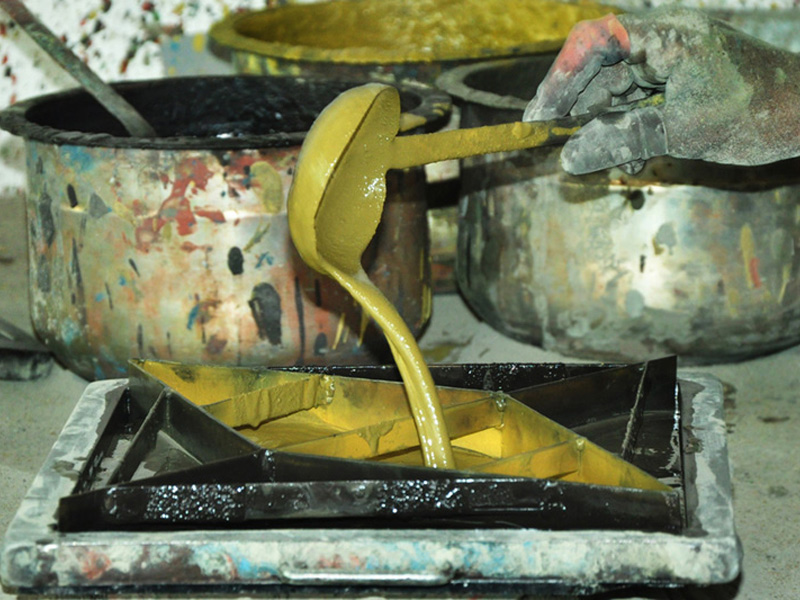

Color solutions are poured in respected compartments of the design frame

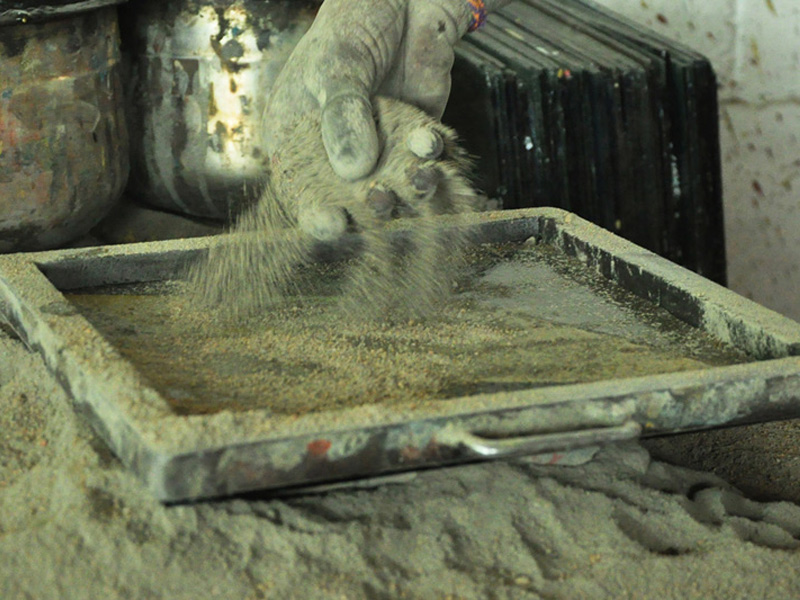

Dry mixture of sand and cement is sprinkled on the design to avoid mixing of colors

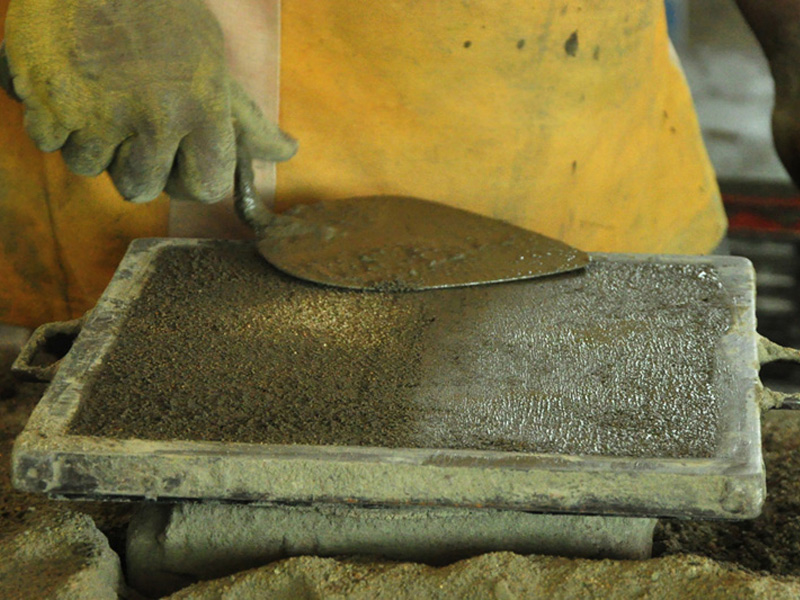

Mixture of cement, sand and baby jelly is filled till the required thickness of the tile is obtained

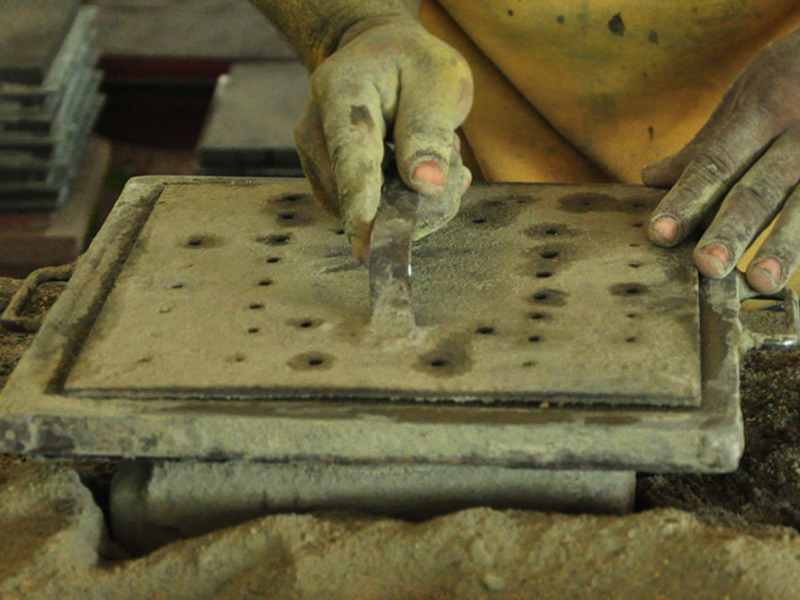

Pressure is applied on the tile to set the cement mixture firmly

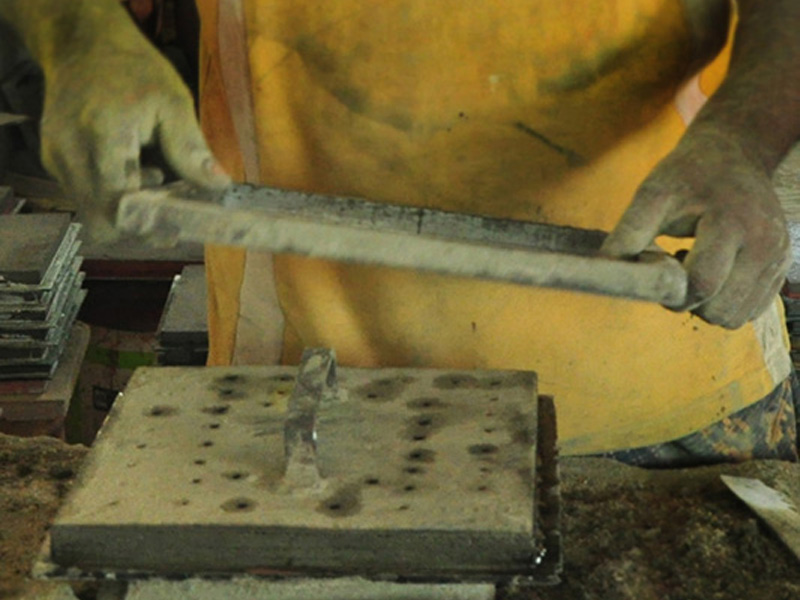

The bordered frame is removed from the finished frame

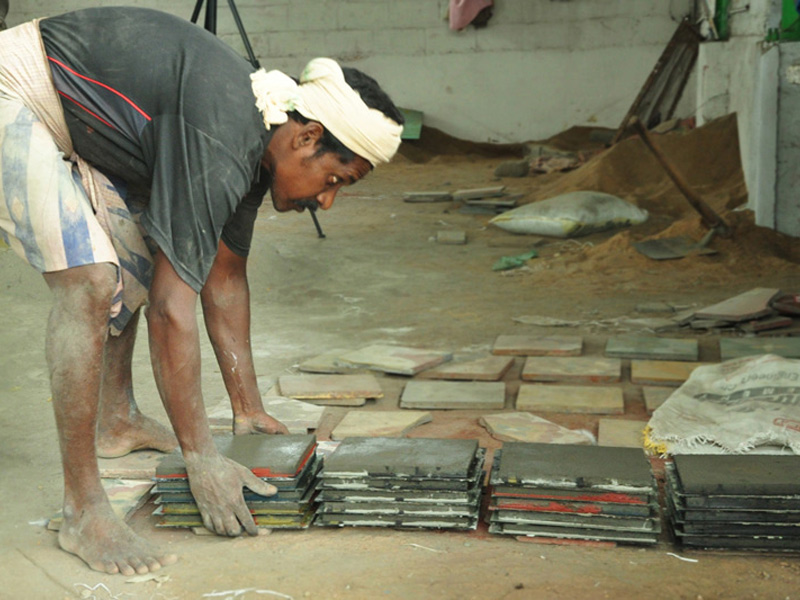

Finished tiles are arranged and kept for drying at room temperature

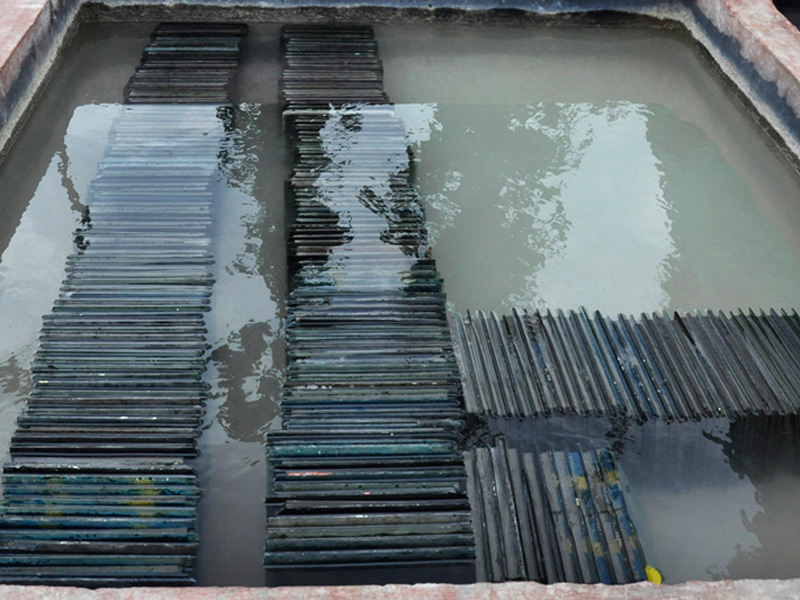

The dried tiles are kept in the water tank for curing process
After curing process the tiles are kept in the sunlight for drying

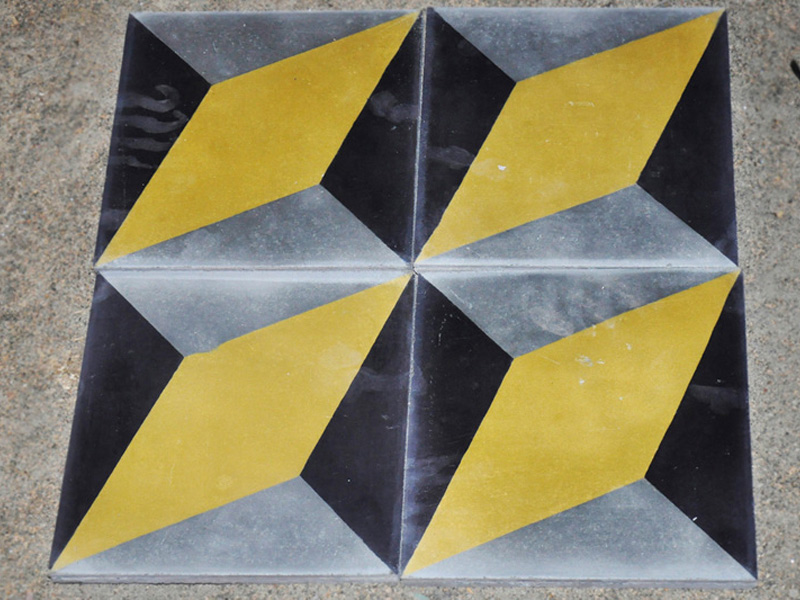

Latest designs are made to keep up with the markettrend

Kerosene is applied on the frame for easy removal of finished tiles	The metal border frame is placed on the glass slab which is used as the base for the tile	Design frame is placed on the glass slab to make the design	Color solutions are poured in respected compartments of the design frame	Dry mixture of sand and cement is sprinkled on the design to avoid mixing of colors	Mixture of cement, sand and baby jelly is filled till the required thickness of the tile is obtained
Pressure is applied on the tile to set the cement mixture firmly	The bordered frame is removed from the finished frame	Finished tiles are arranged and kept for drying at room temperature	The dried tiles are kept in the water tank for curing process	After curing process the tiles are kept in the sunlight for drying	Latest designs are made to keep up with the markettrend

Cement and sand and baby jelly is mixed with water and converted into dough. To make the colors, artisan mixes color with sand, cement and water turning it into a thin paste. The machine mixes the materials and converts them into much finer paste. The metal border frame is placed on the glass slab which is used as the base for the tile. Design frame is placed on the glass slab to make the design. Color solution is poured in different compartment of the frame as per design. Dry mixture of sand and cement is sprinkled on the colored layer to avoid mixing of colors.

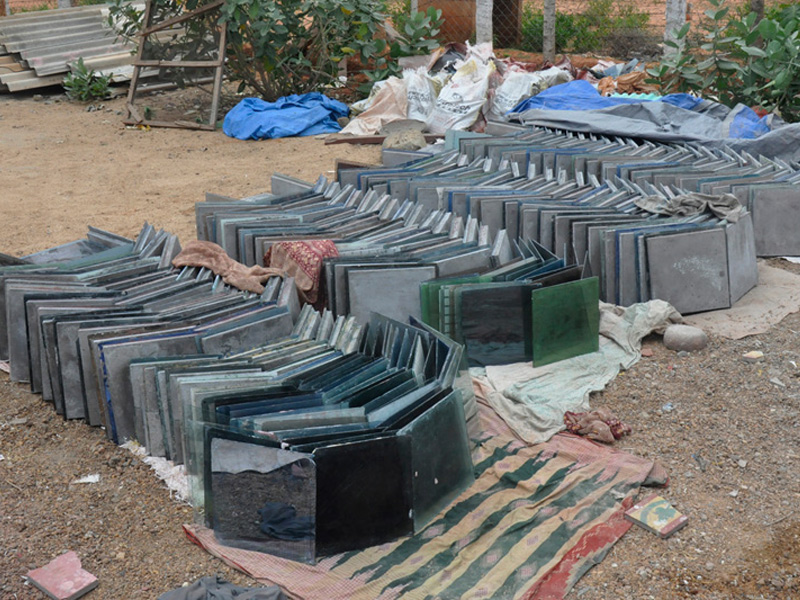

The pre-prepared dough is spread on the design and then leveled. The border frame is removed and the tile is kept to dry in room temperature for overnight. Then the dried tiles are soaked in water tank for 6 days. Later they are kept in sunlight to dry. When dried the glass frame automatically ease out. The glass slab leaves a shine and luster effect on the final product.
