    Wool Weaving - Almora

    Wool Weaving of Khadigram NGO
    by
    Prof. Bibhudutta Baral,Tushar Barman, Aruna Kumari Y.andAnkana Sen
    NID, Bengaluru
    Carding and Spinning

    • Printer-friendly version

    The process of carding starts once the trimming of wool is done. Trimming (cutting wool from sheep) is done once in a year during summer seasons. The procured wool is sorted and divided as per the quality grade and color of the wool. During this process, any impurities and poor quality wool is sorted out and fine quality wool is sent for carding process.

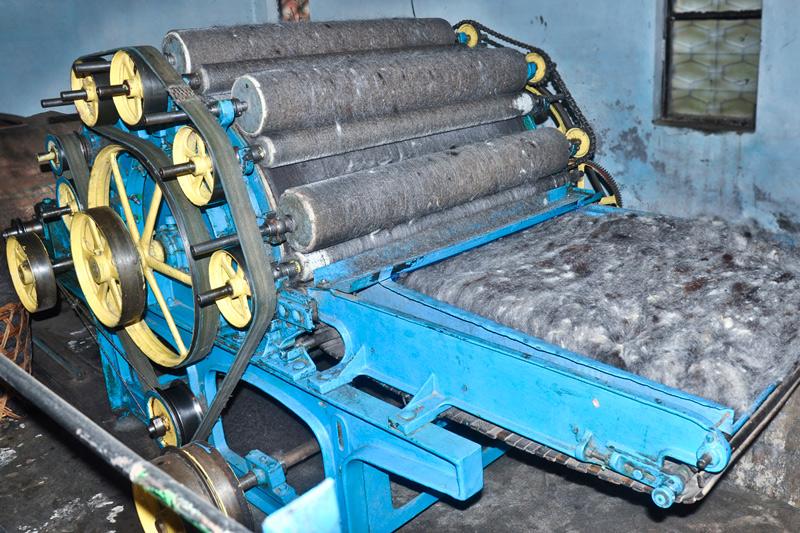

    Carding Process: During this process, the quality wool is cleaned using detergents and dried under sunlight. Then the cleaned wool is passed through the rollers of carding machine. The rollers have thin metal wire called teeth in technical words. These teeth helps in removing entangles.

    Carding process has three steps:

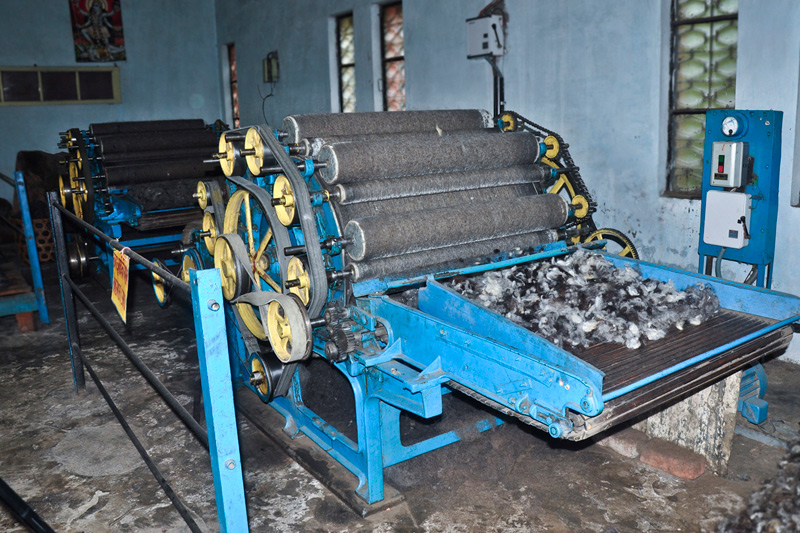

    In first step, using the carding machine called the Willow Carding machine the raw wool is opened and separated which removes the entanglements and dust particles.

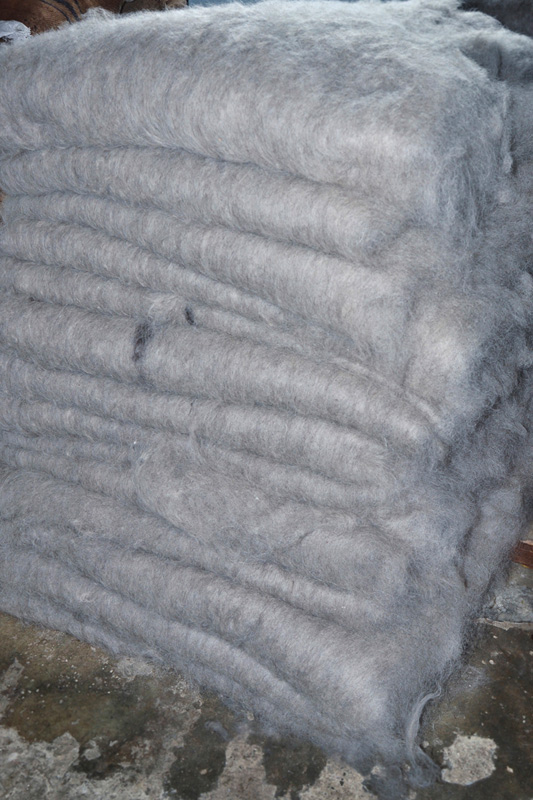

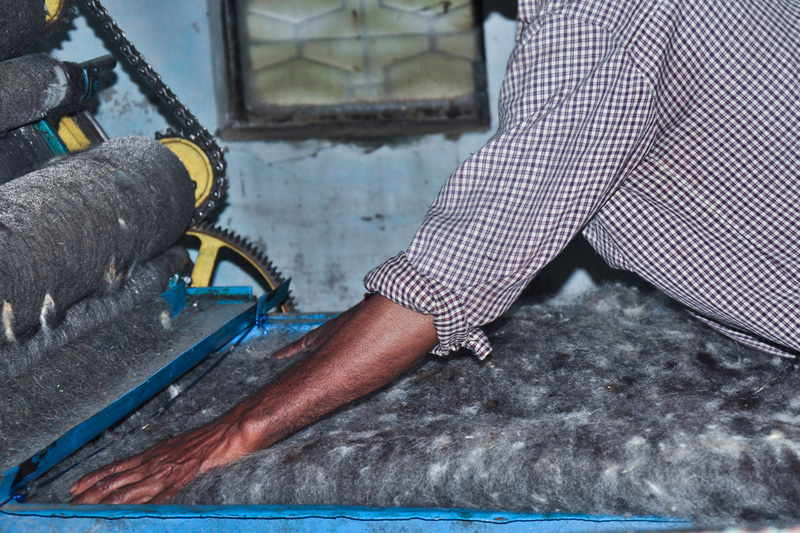

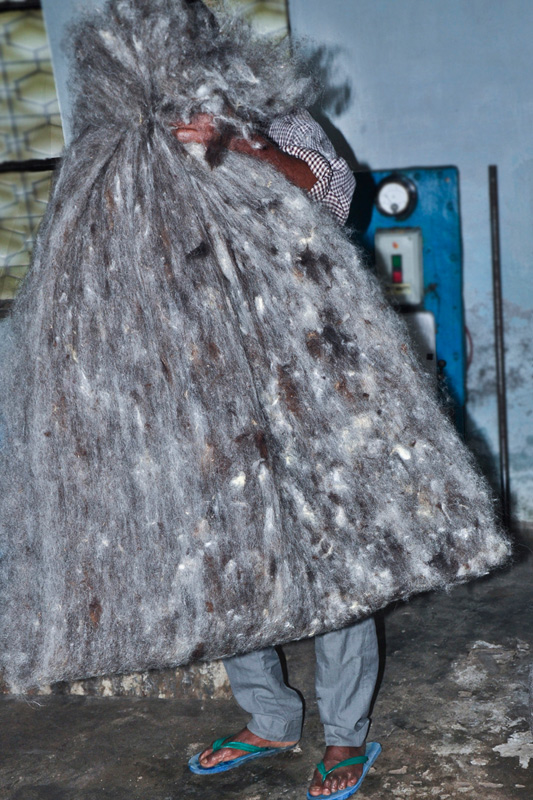

    In the second step, in the carding machine called the Beaker Carding machine, the wool passes through roller with small thin teeth, which separates the fiber and arranges them parallel to each other. This process converts the wool into a sheet of wool.

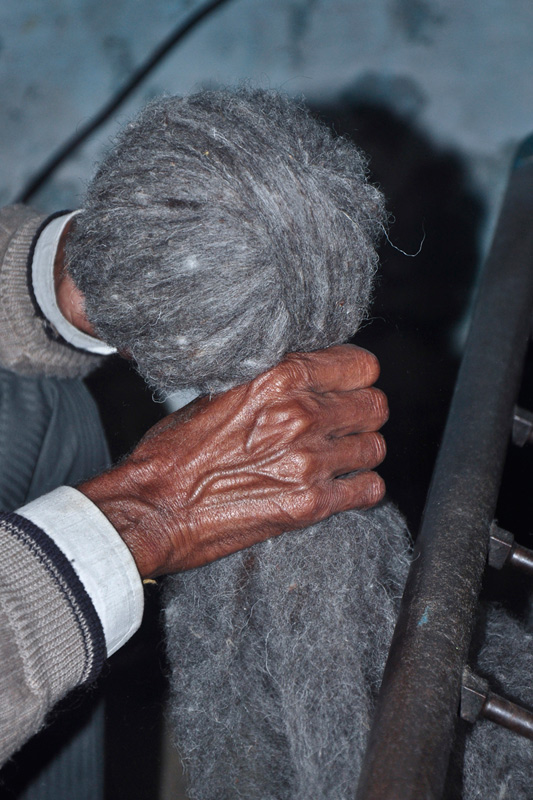

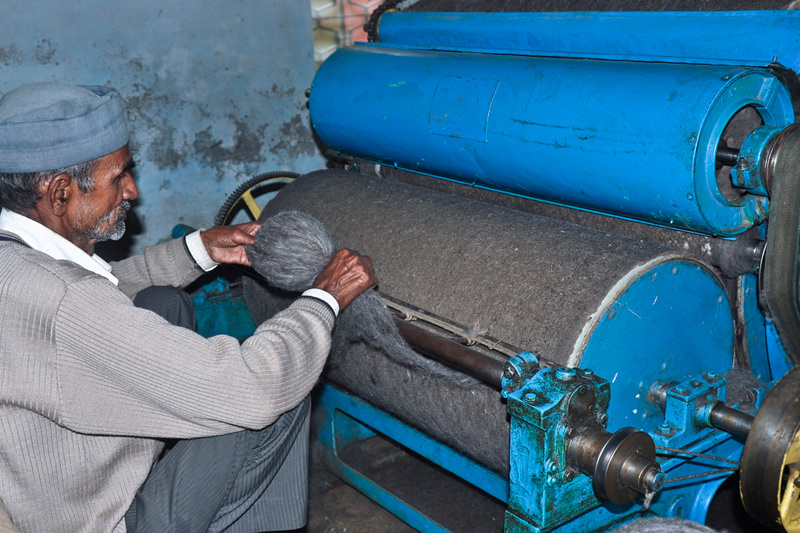

    In third step, machine called the Final carding machine converts the wool sheet into much thin sheet, and a worker twists and rolls it into woolen balls.

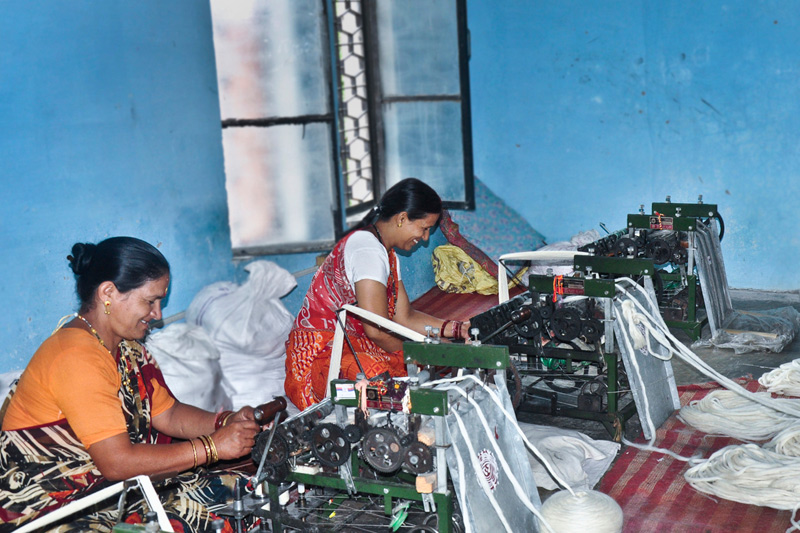

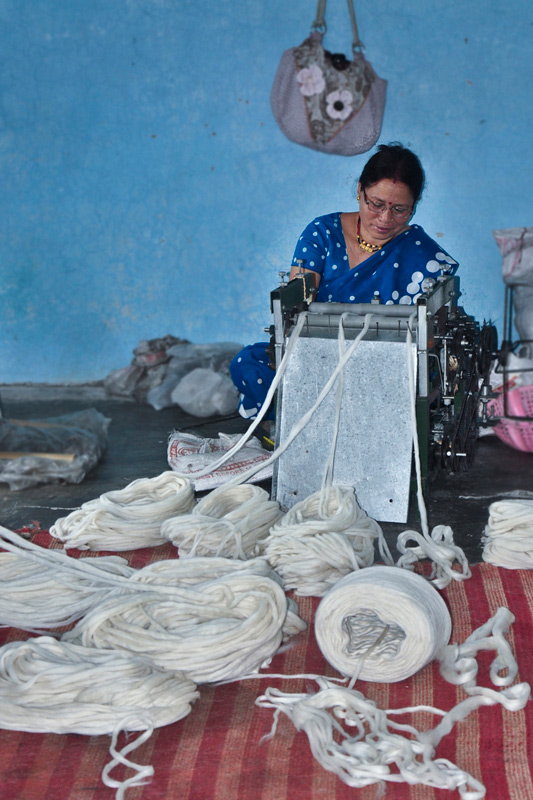

    These woolen balls are fixed to a spinning machine called Ambarsar. The wool are processed into thin woolen thread and spun on spindles. The thread is again spun into woolen yarn from the spindles. These yarns are weighed and sent for coloring process.
