Visually Understanding Theory of Relativity

Online interactive articleto explain the conceptual fundamentals

Jribh Shandilya and Prof. Venkatesh Rajamanickam

IDC, IIT Bombay

Case Study - Slide Show

Design process that was followed in this project:

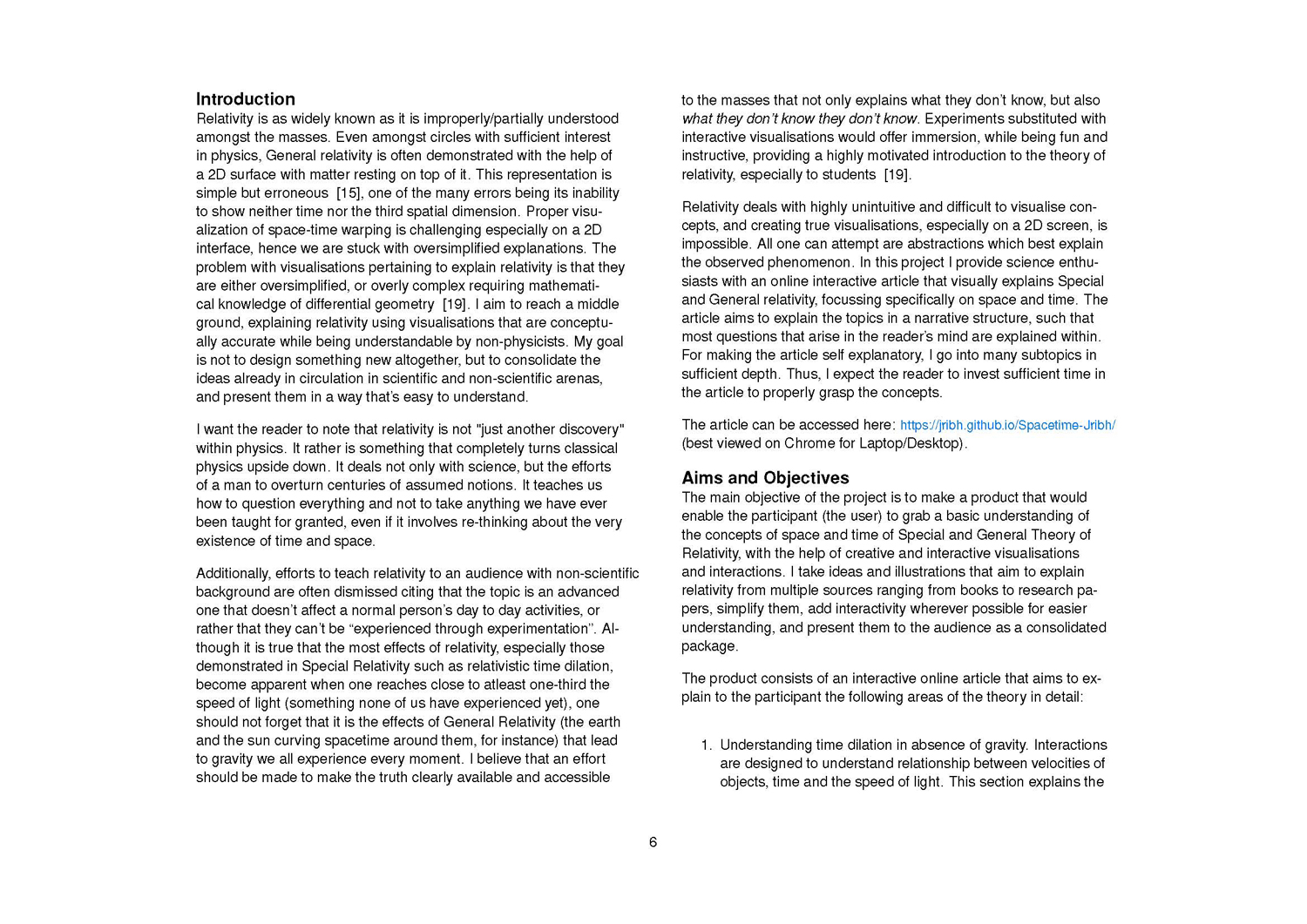

• Introduction

• Aims and Objectives

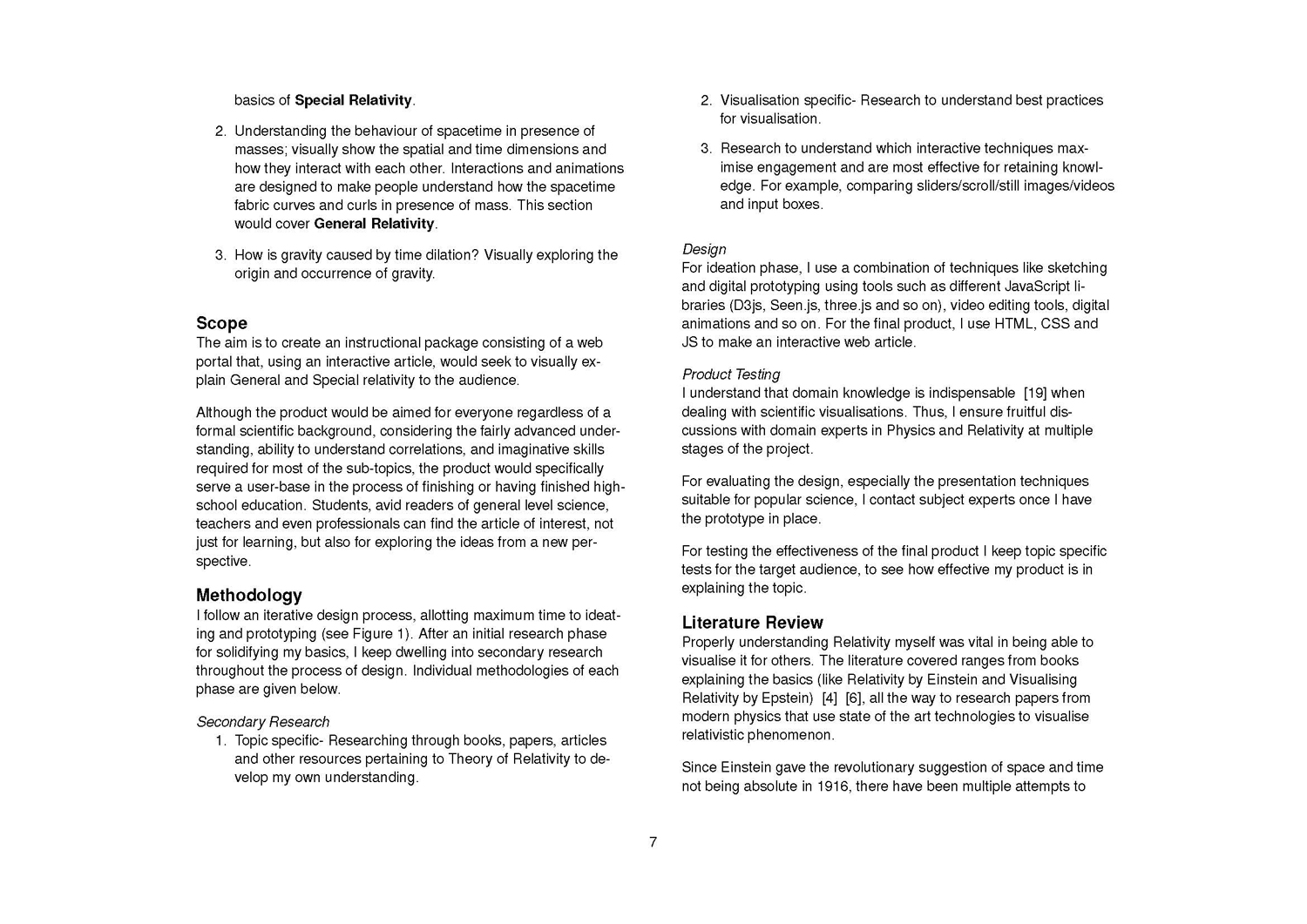

• Scope

• Methodology
   - Secondary Research
   - Design

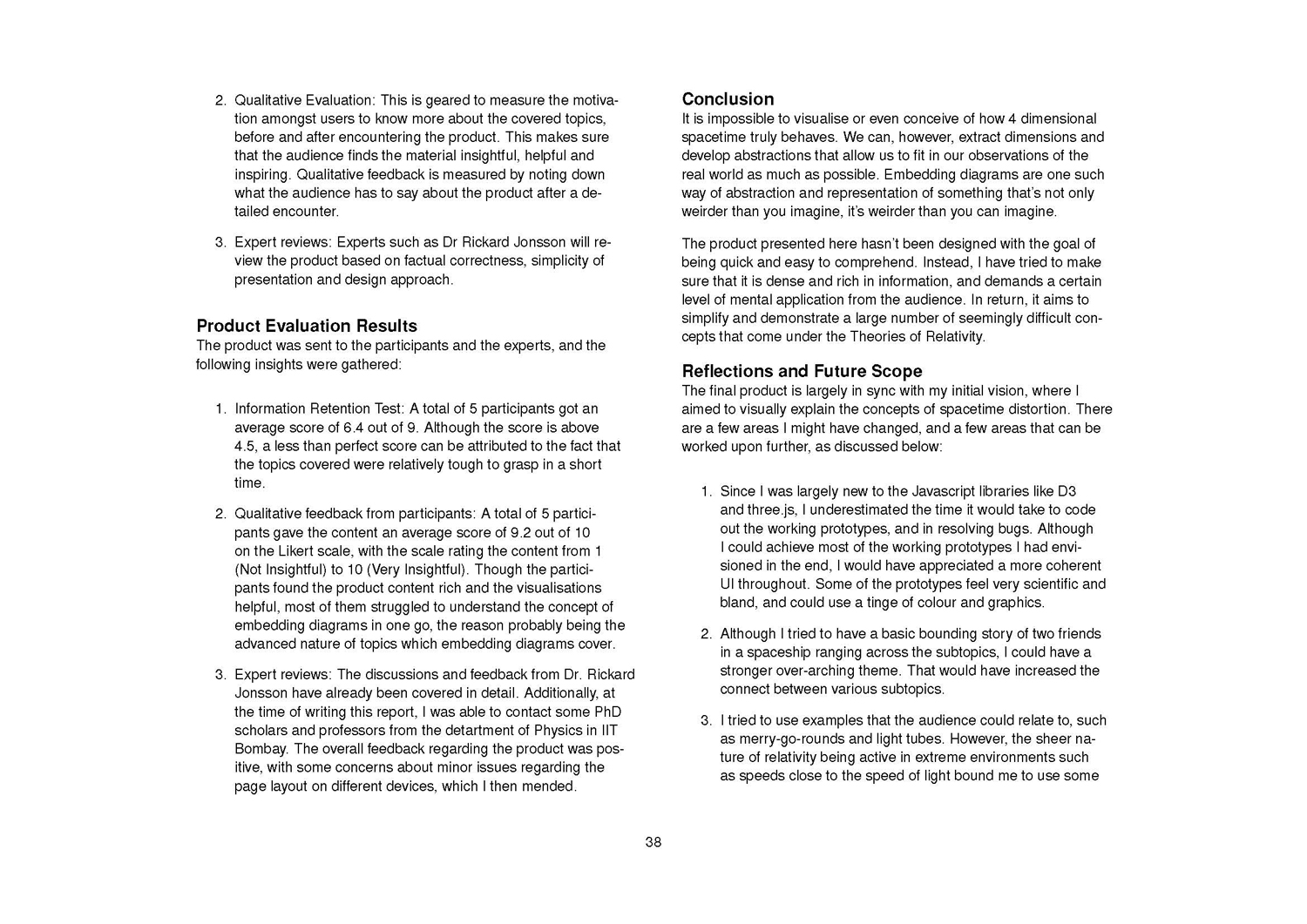

   - Product Testing

• Literature Review
   - Special Relativity

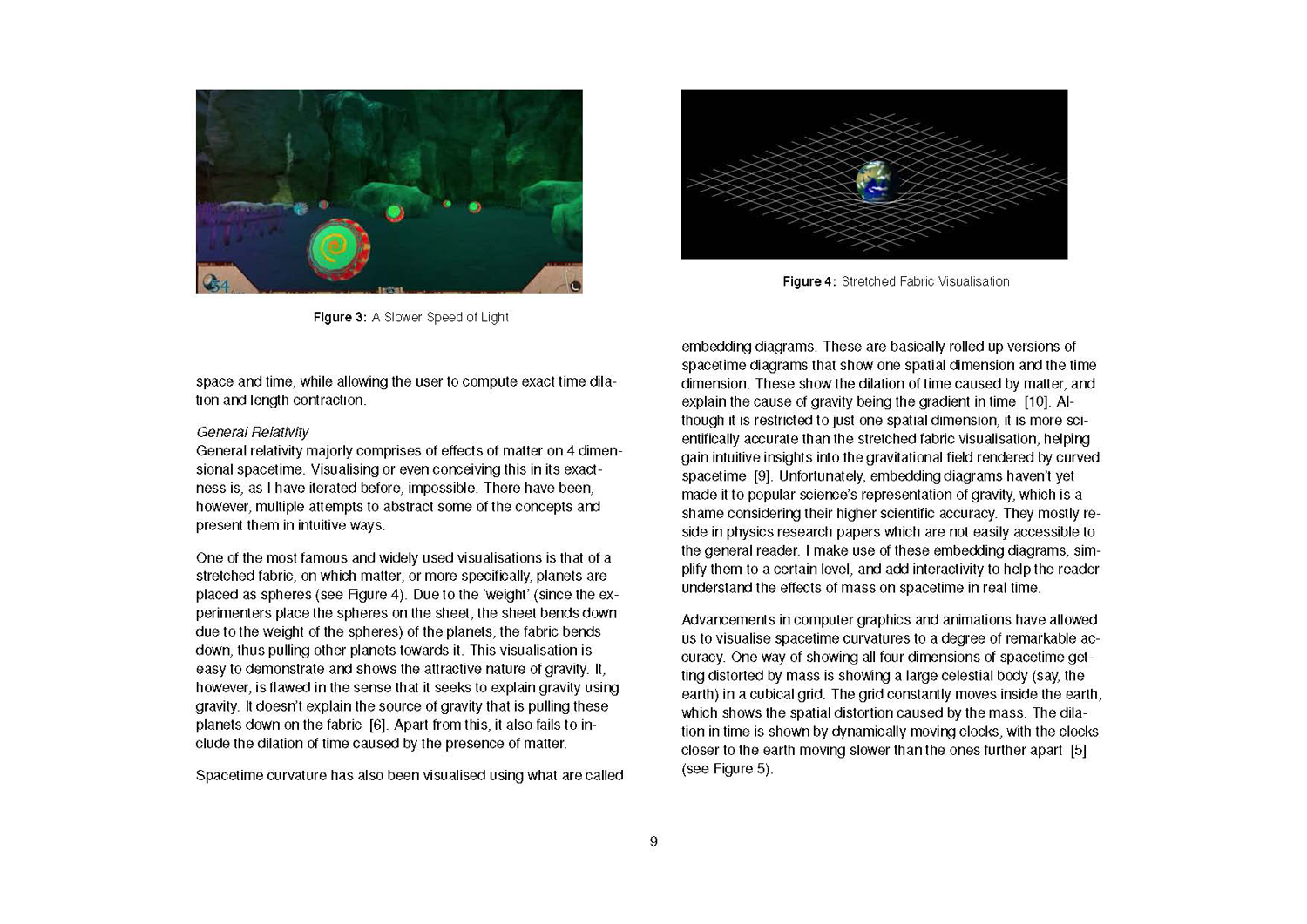

   - General Relativity
   - Data Visualisation
   - Interactive Online Articles

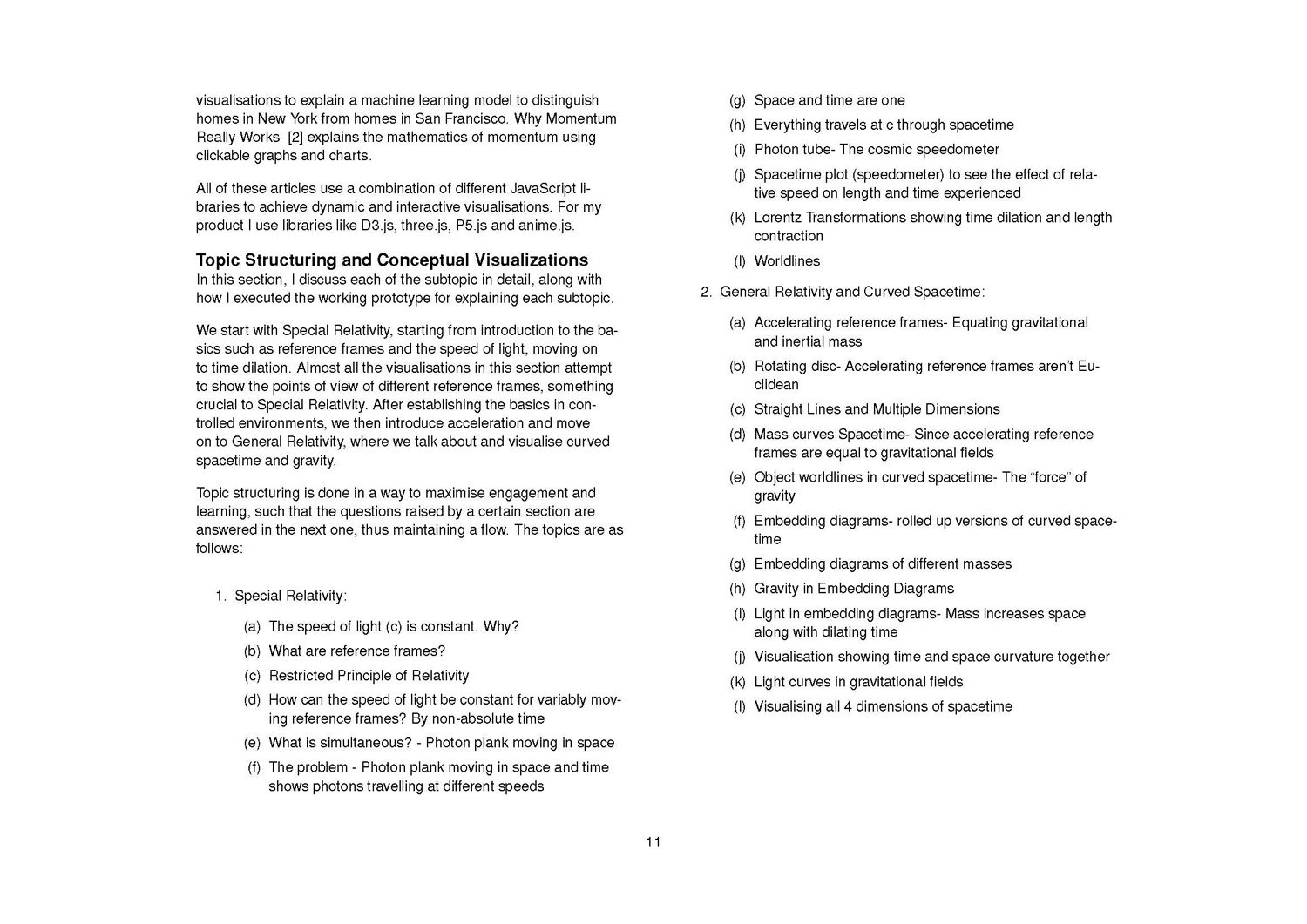

• Topic Structuring and Conceptual Visualizations

• Special Relativity

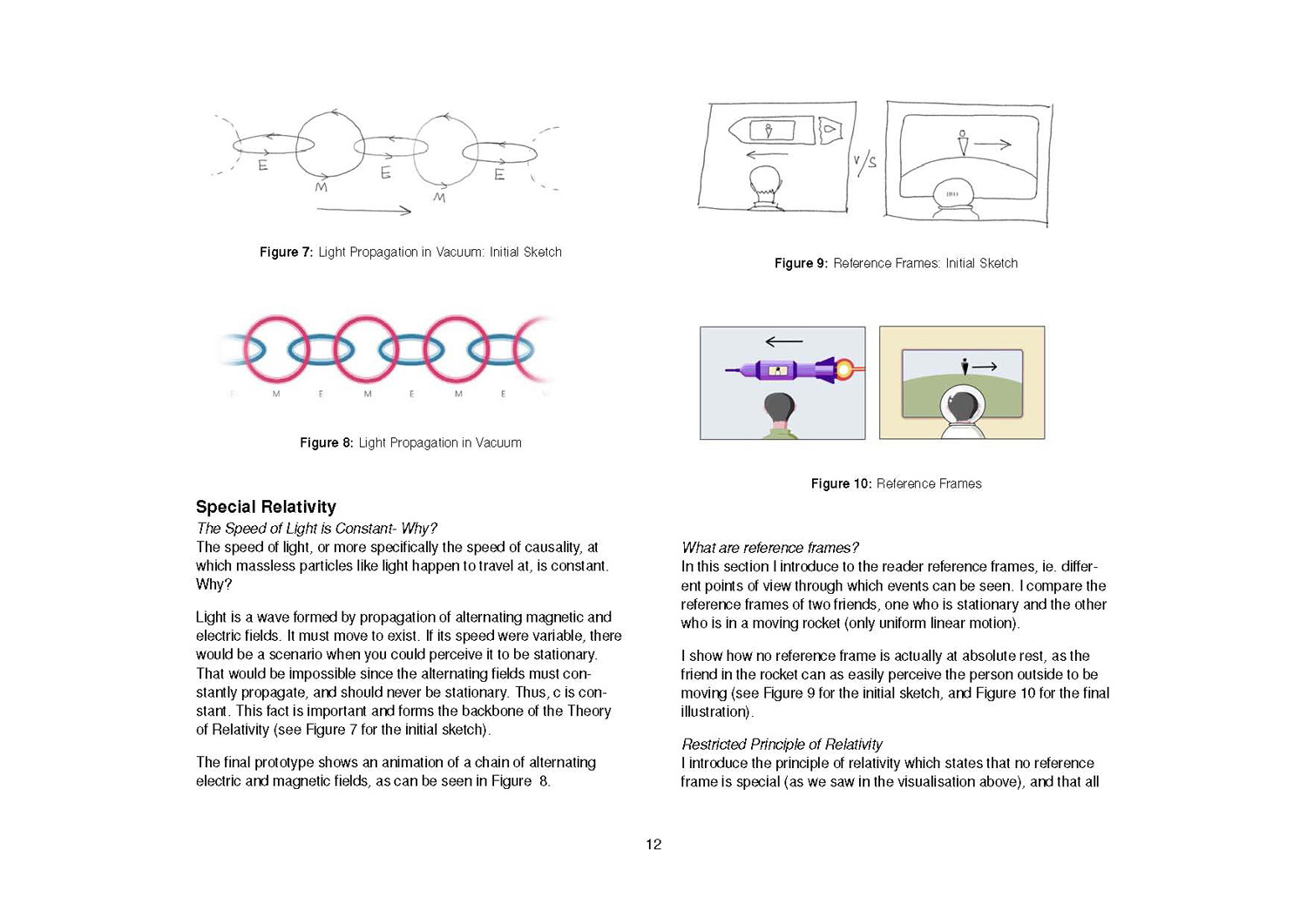

   - The Speed of Light is Constant- Why?
   - What are reference frames?
   - Restricted Principle of Relativity

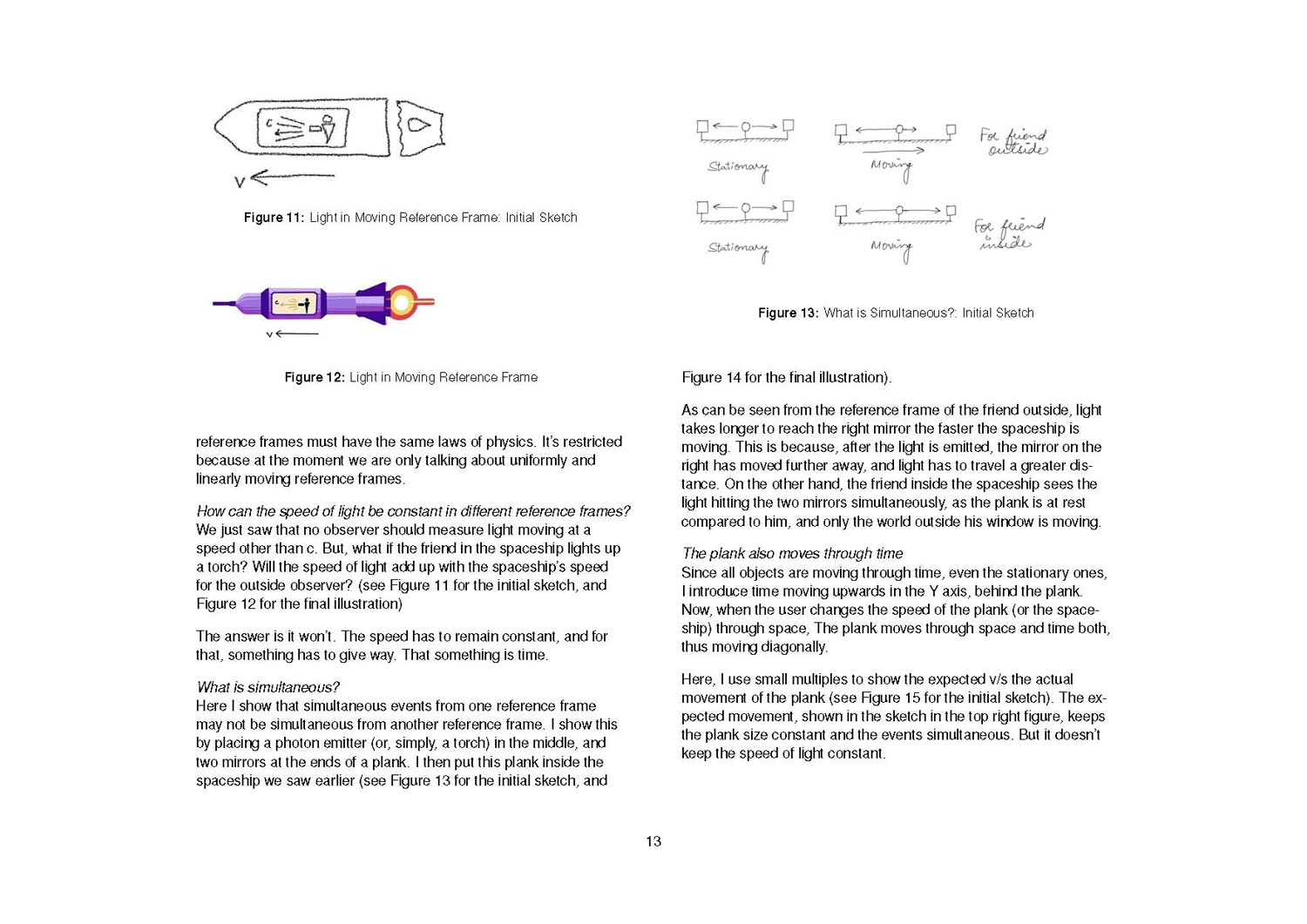

   - How can the speed of light be constant in different reference frames?

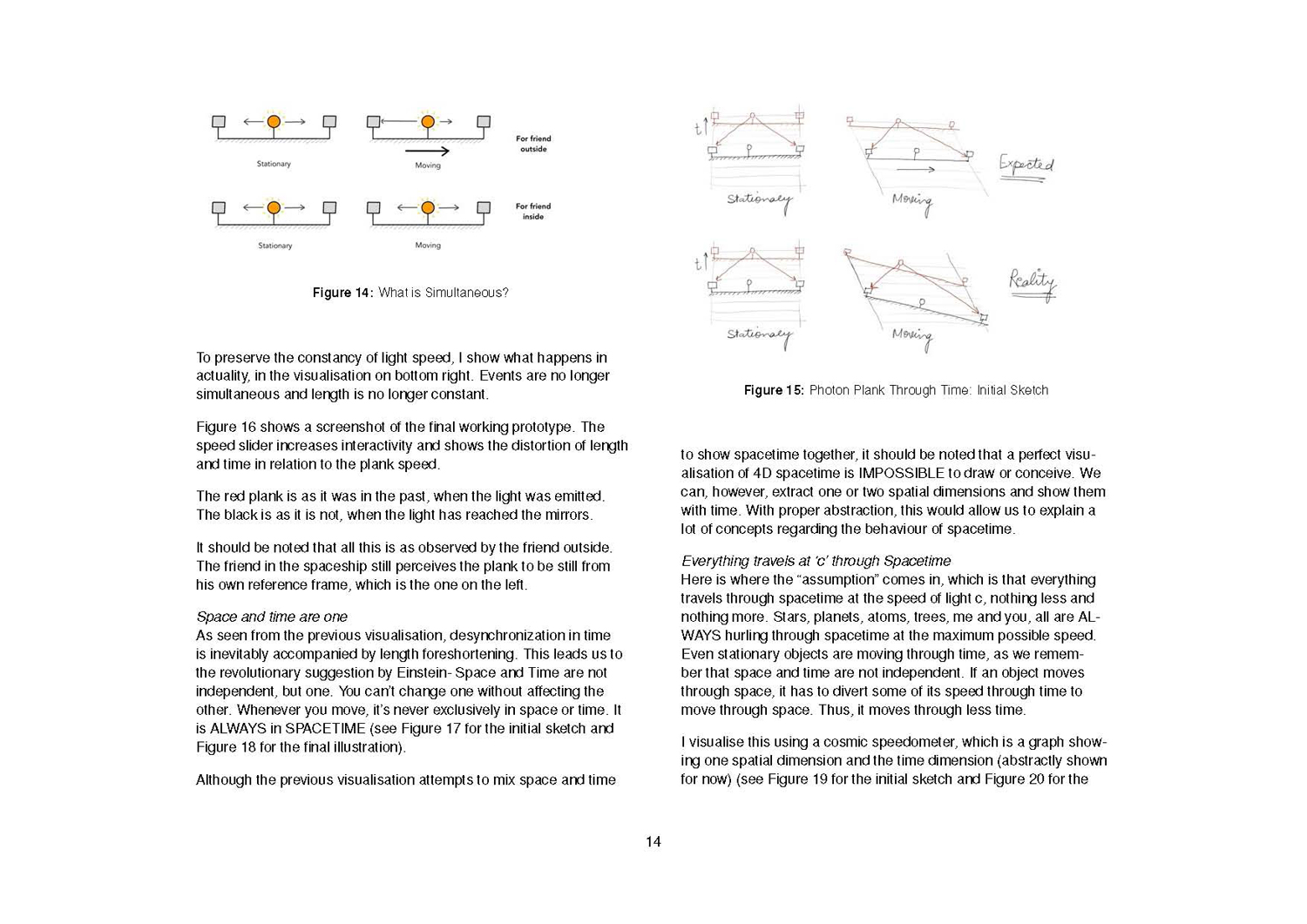

   - What is simultaneous?

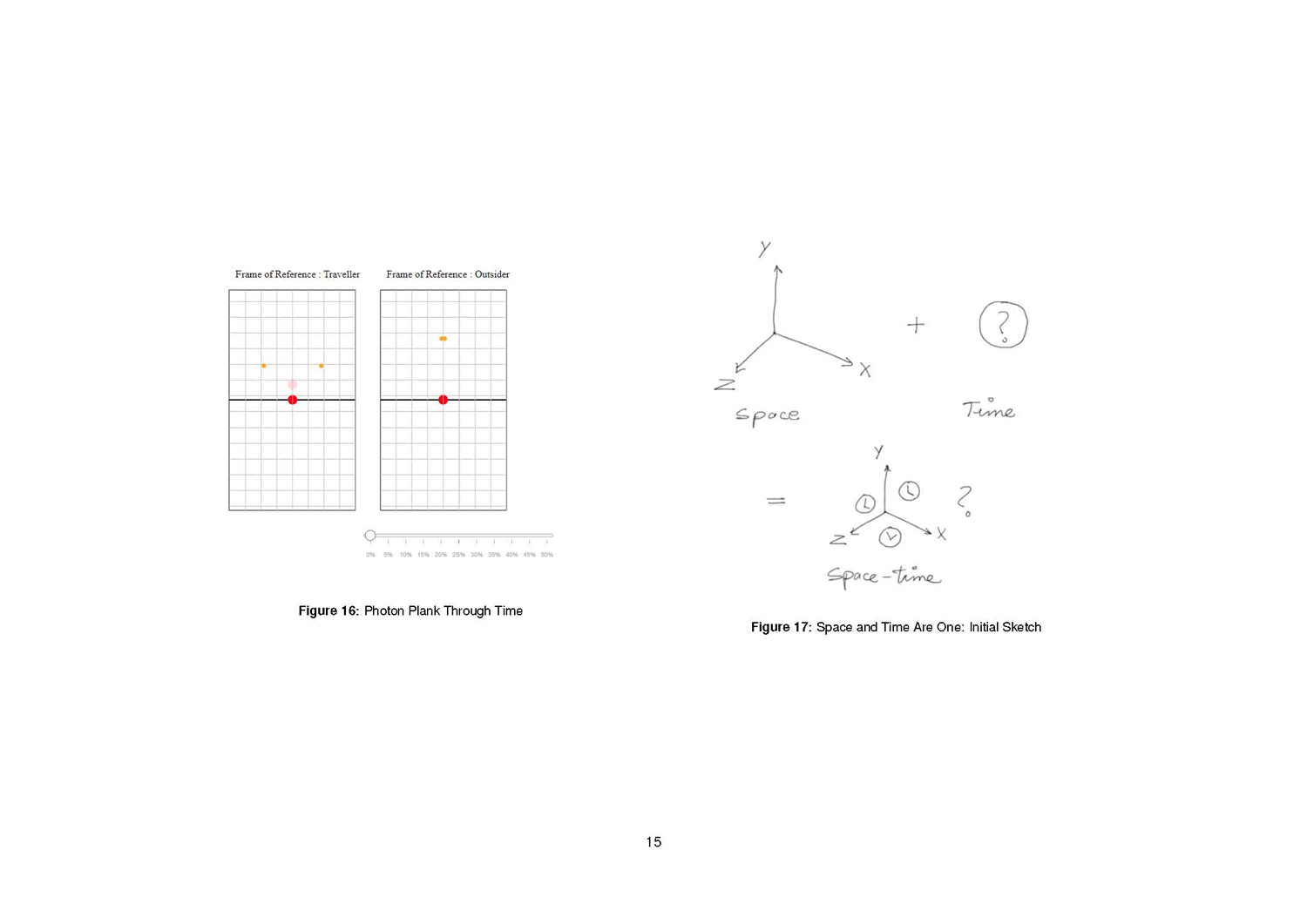

   - The plank also moves through time
   - Space and time are one
   - Everything travels at ‘c’ through Spacetime

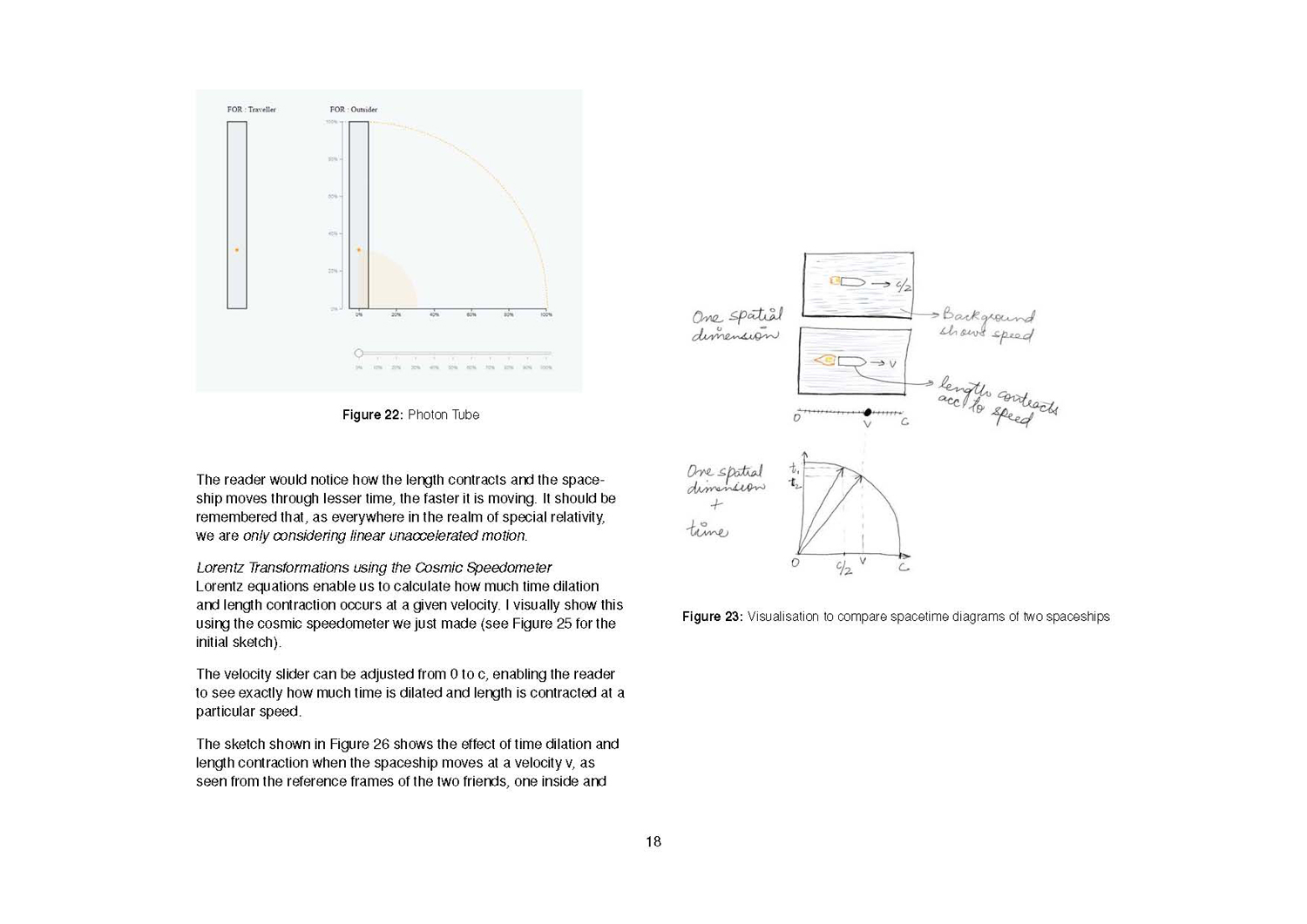

   - Photon tube- The cosmic speedometer
   - Spacetime plot (speedometer) to see the effect of relative speed on length and time
      experienced

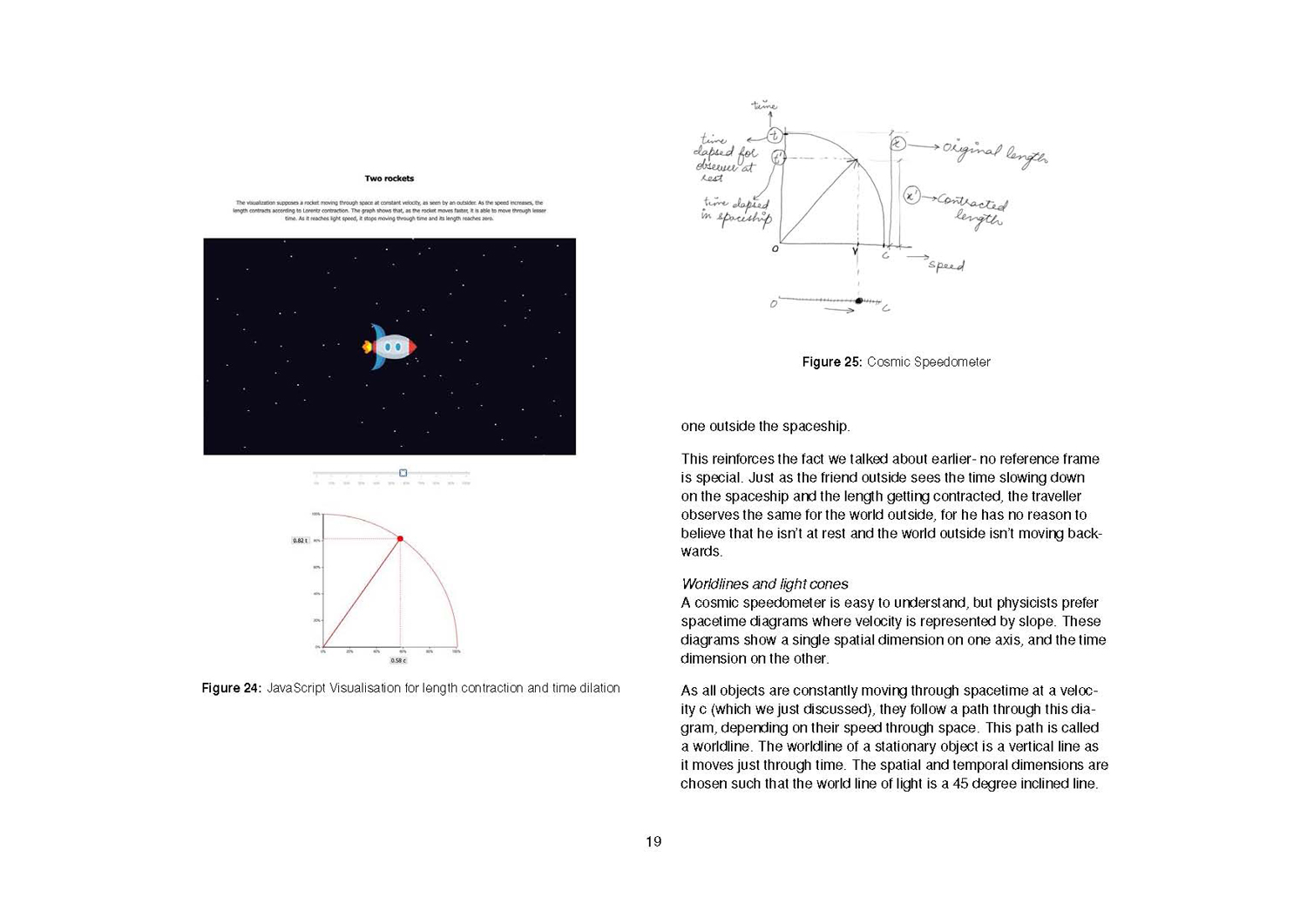

   - Lorentz Transformations using the Cosmic Speedometer

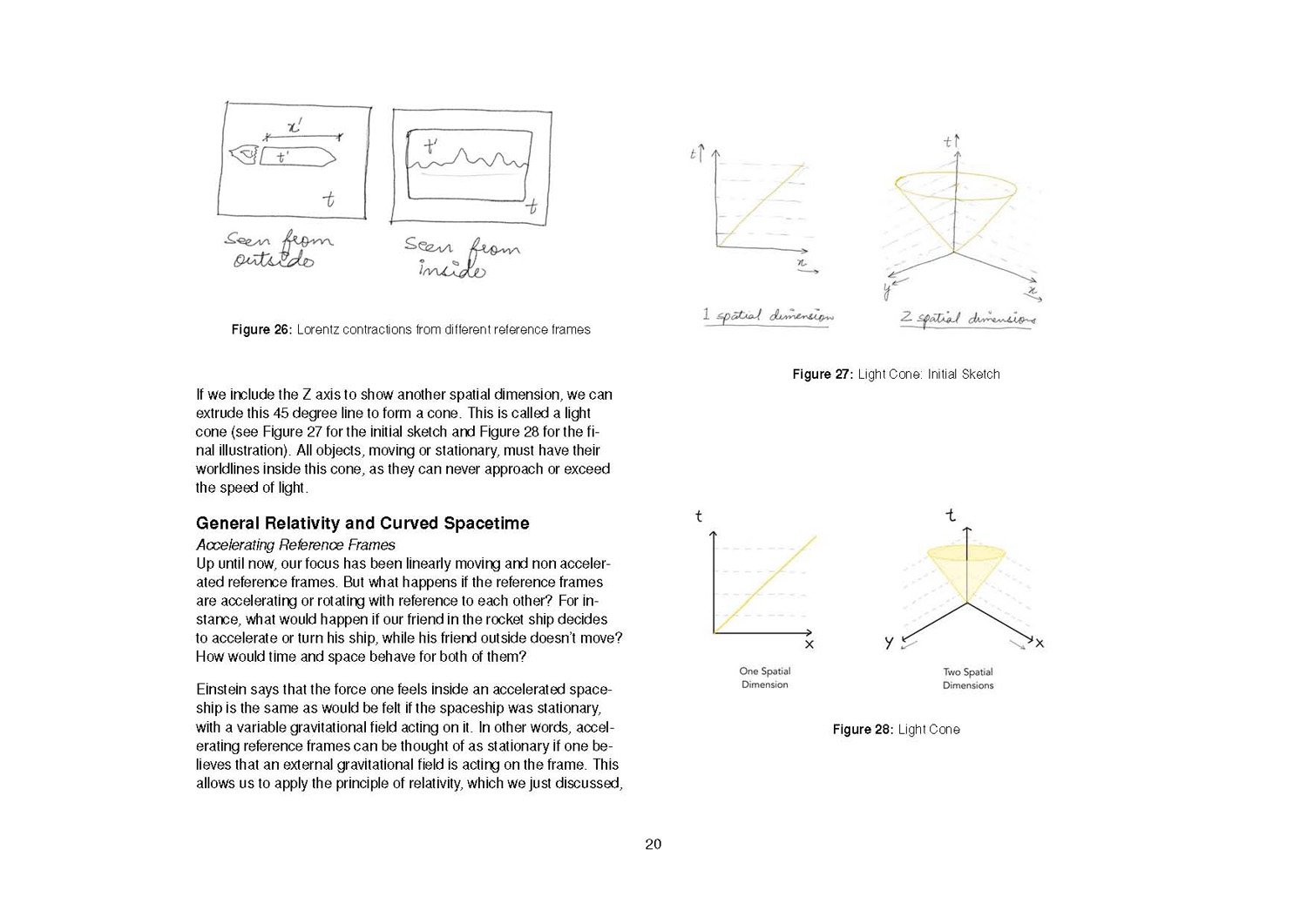

   - Worldlines and light cones

• General Relativity and Curved Spacetime

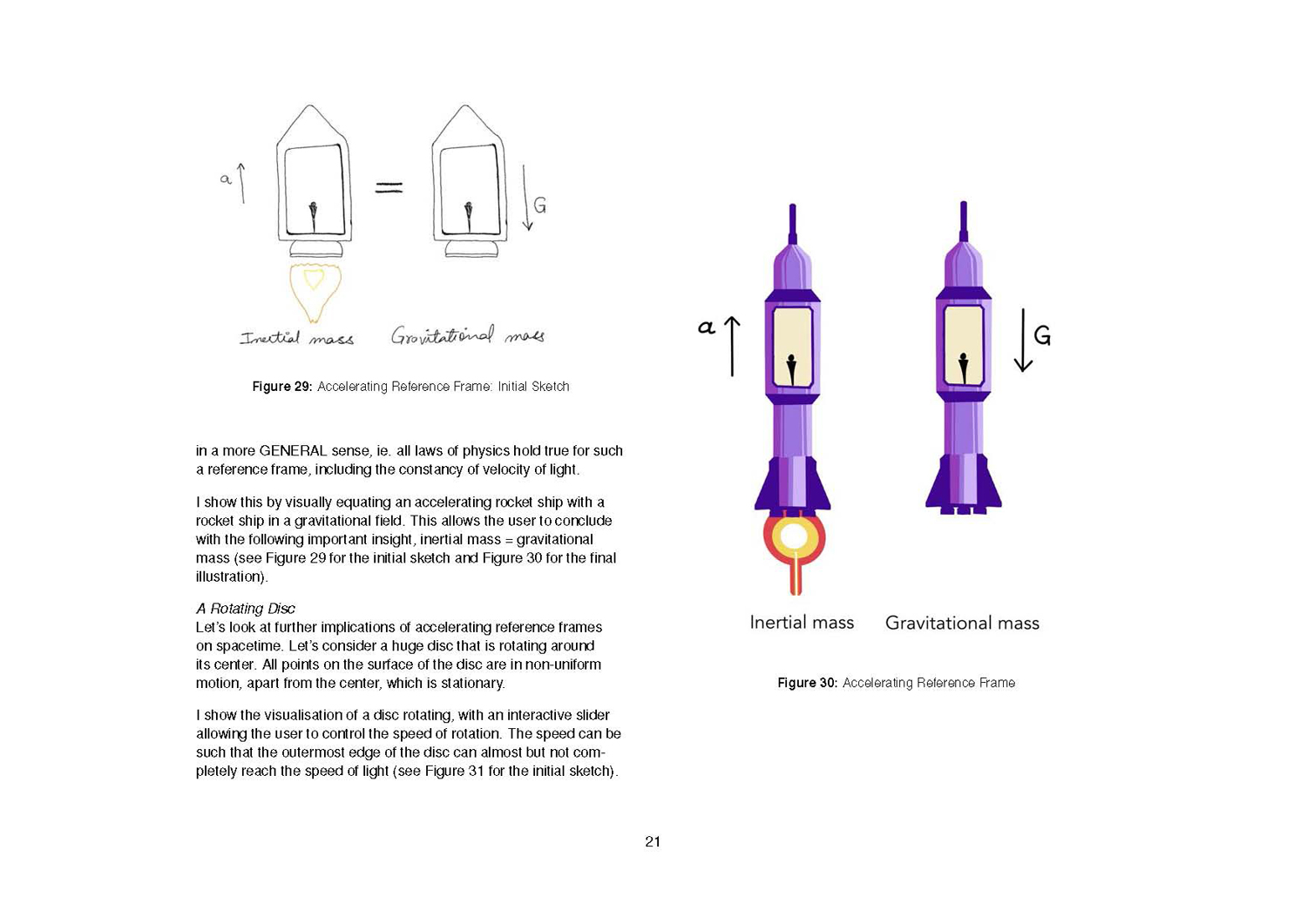

   - Accelerating Reference Frames
   - A Rotating Disc

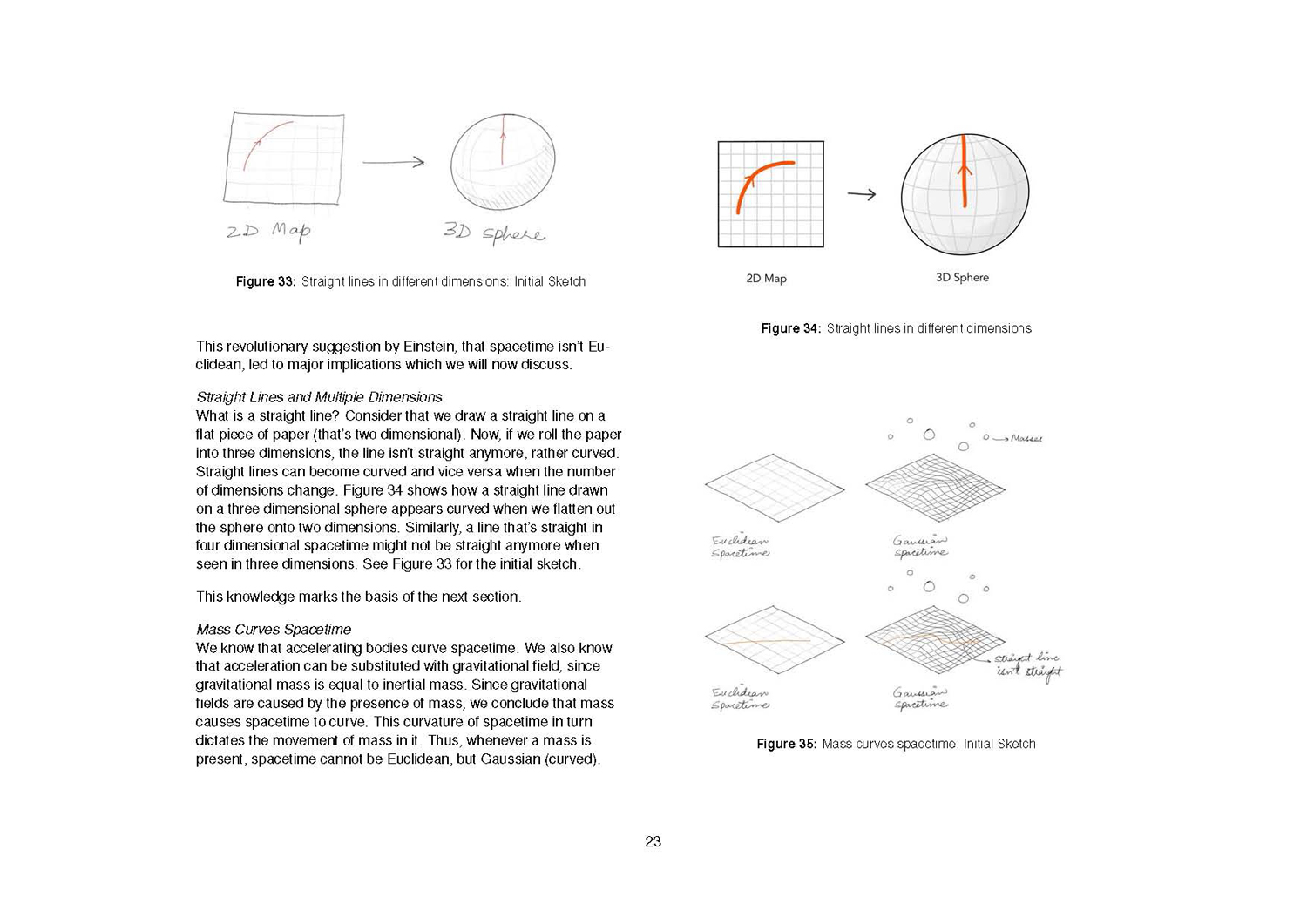

   - Straight Lines and Multiple Dimensions
   - Mass Curves Spacetime
   - Worldlines in curved spacetime - Gravity

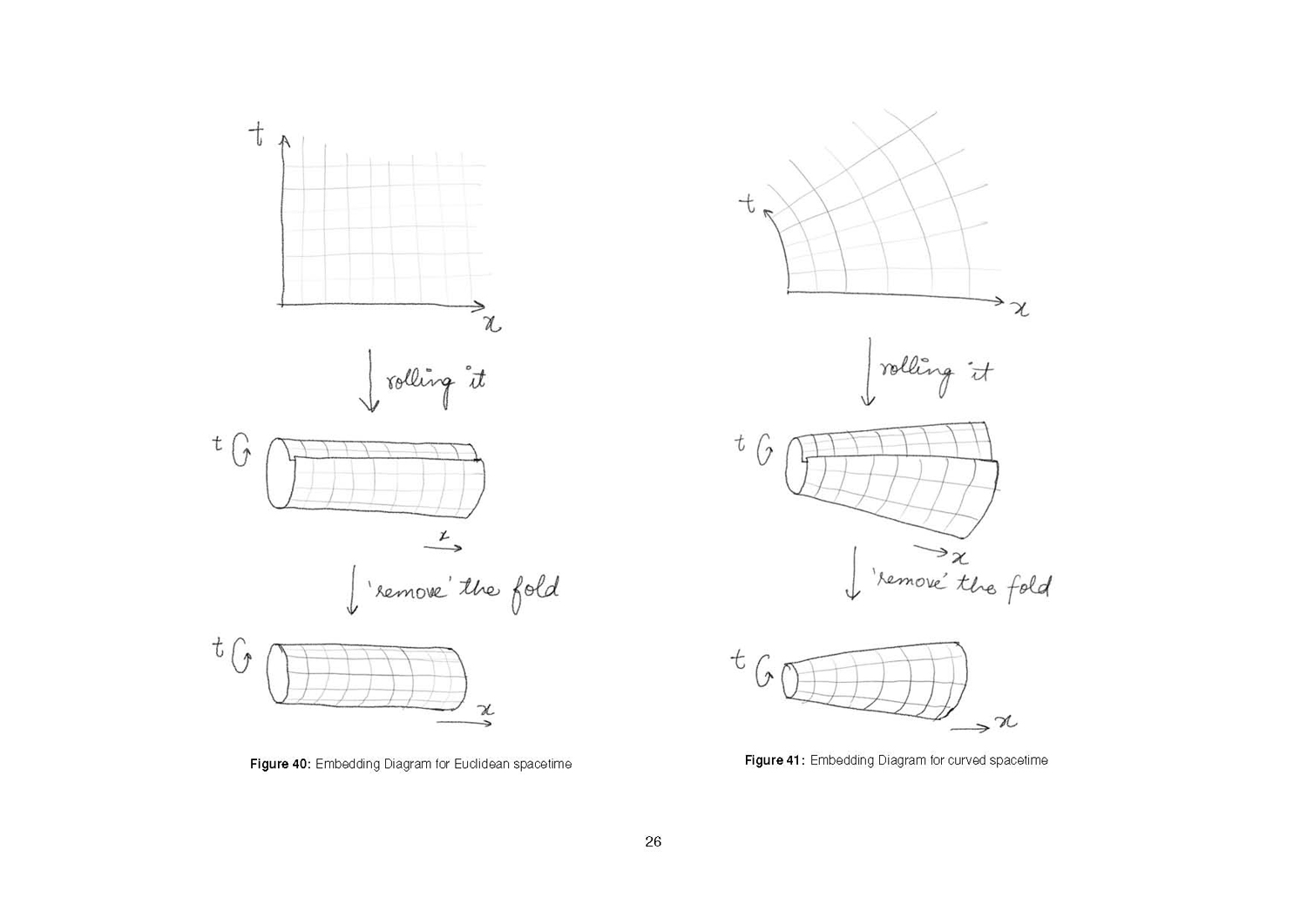

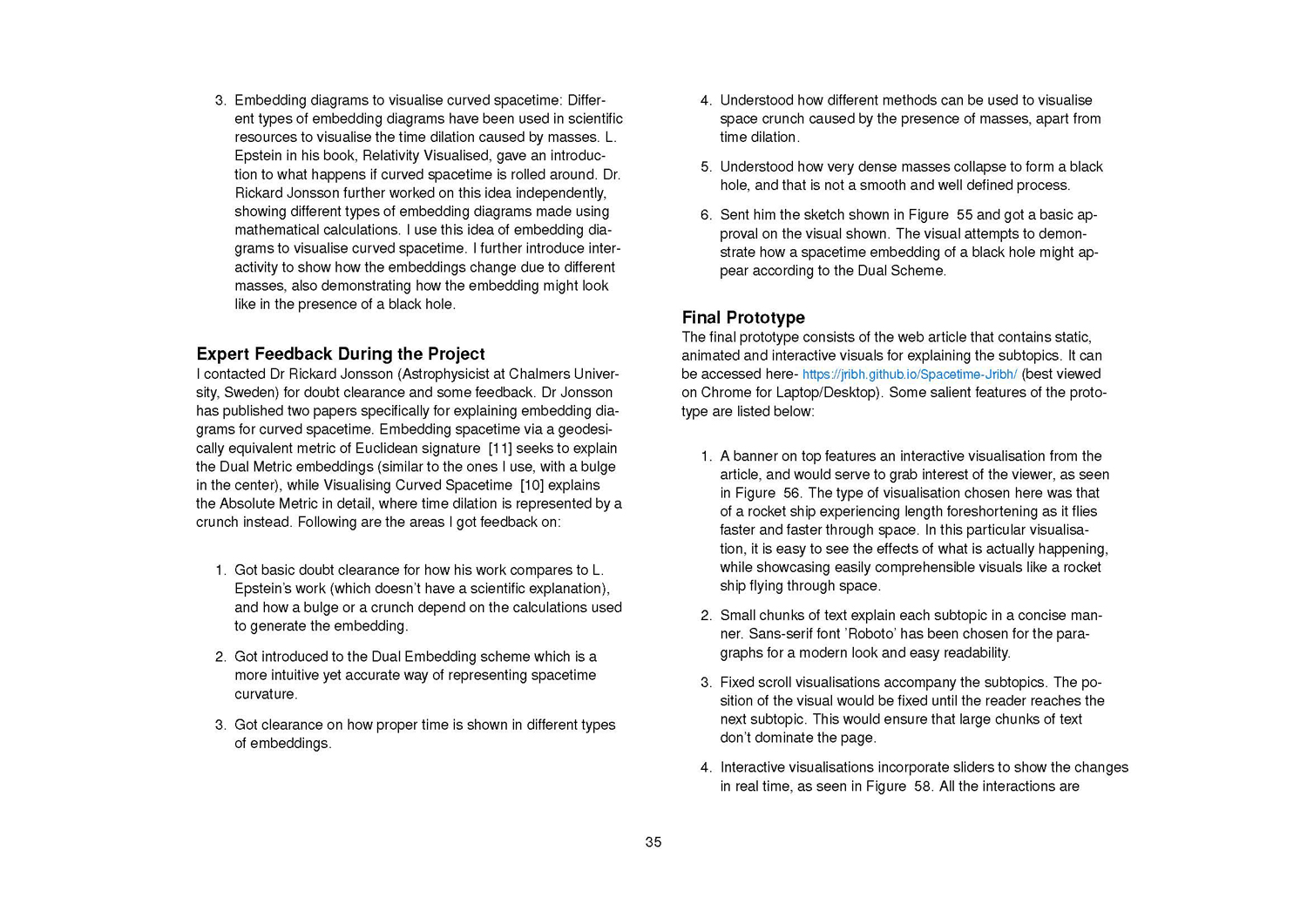

   - Embedding Diagrams- Rolling Up Curved Spacetime
   - Embedding diagrams of different masses

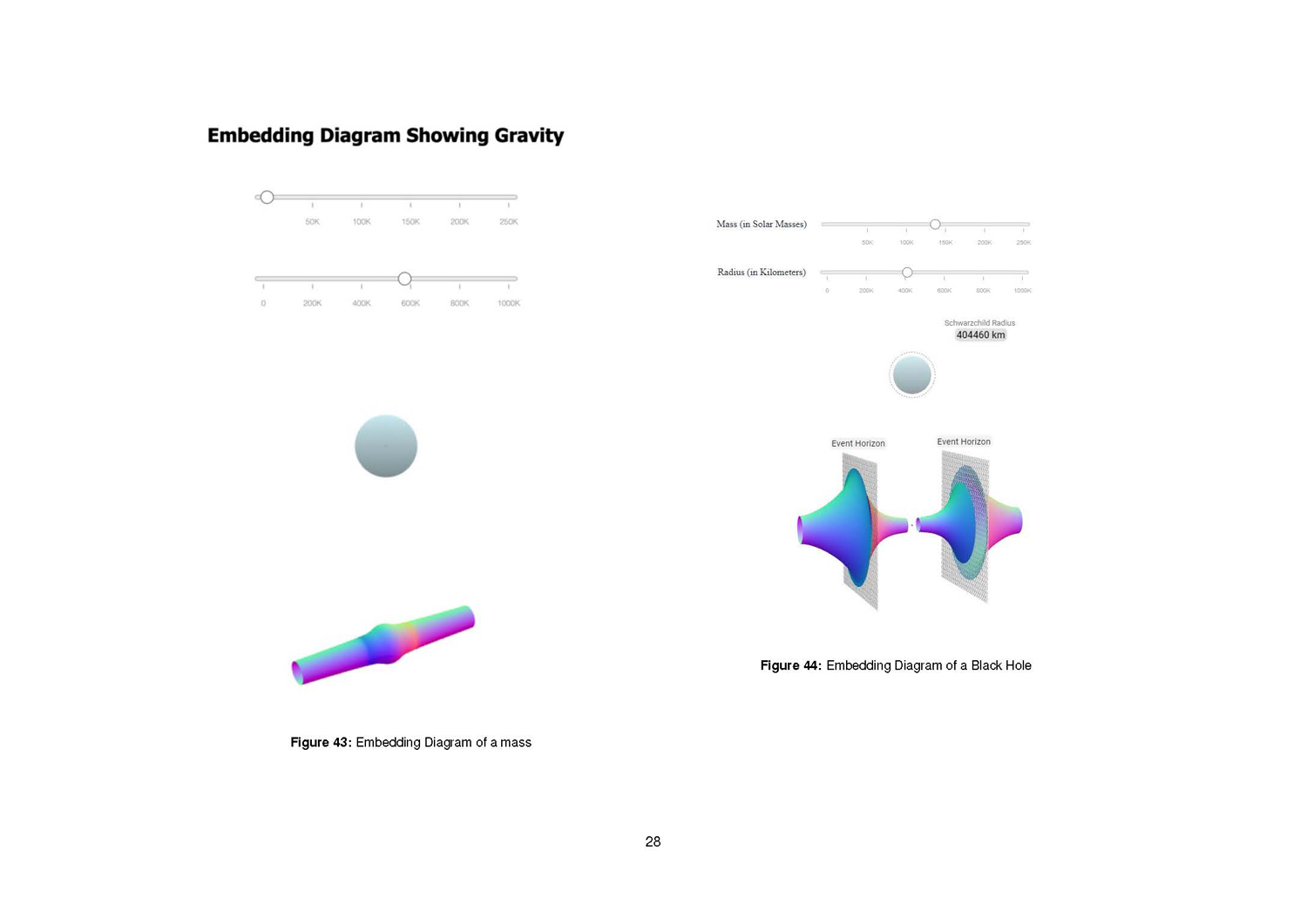

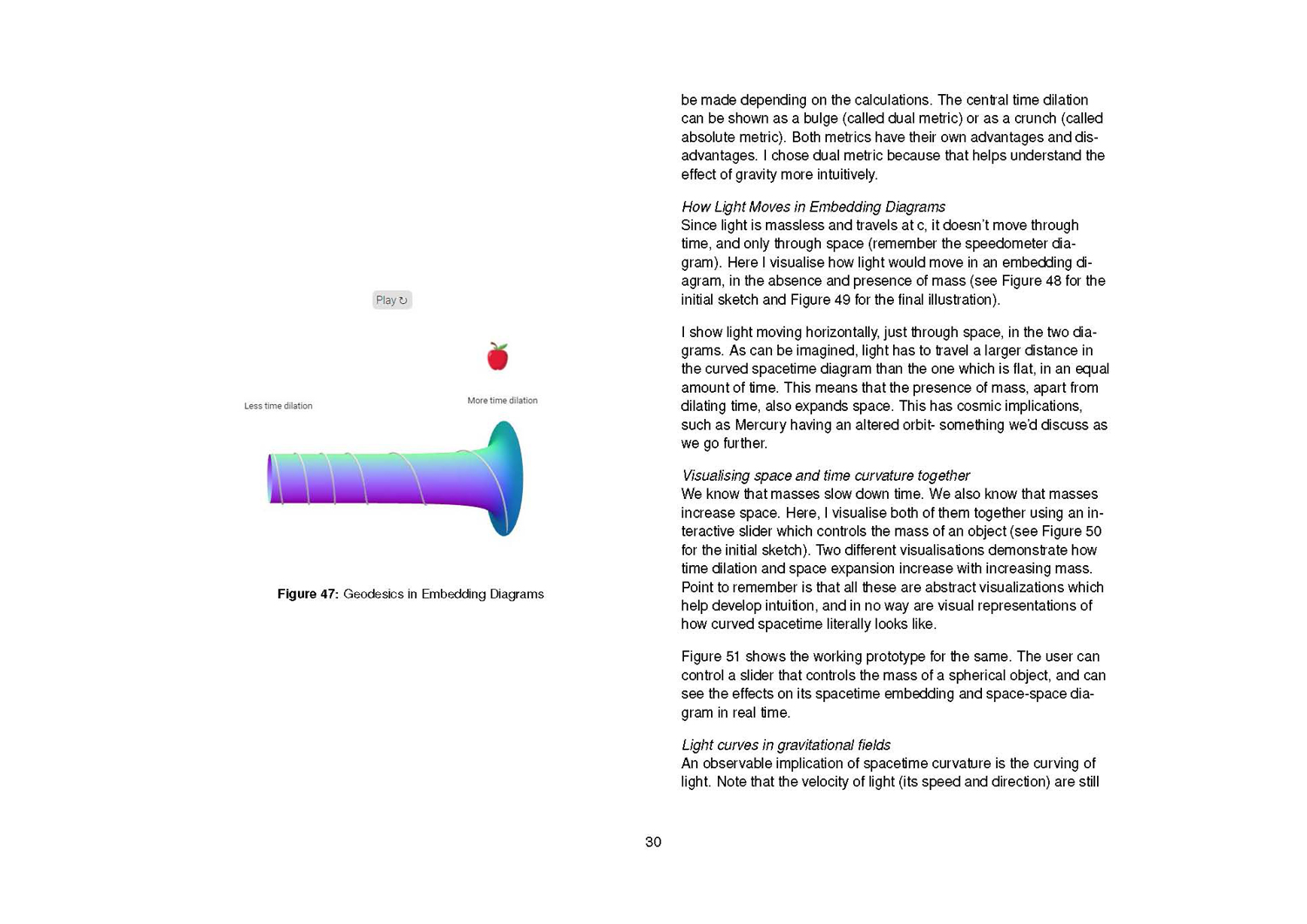

   - Gravity in Embedding Diagrams
   - How Light Moves in Embedding Diagrams

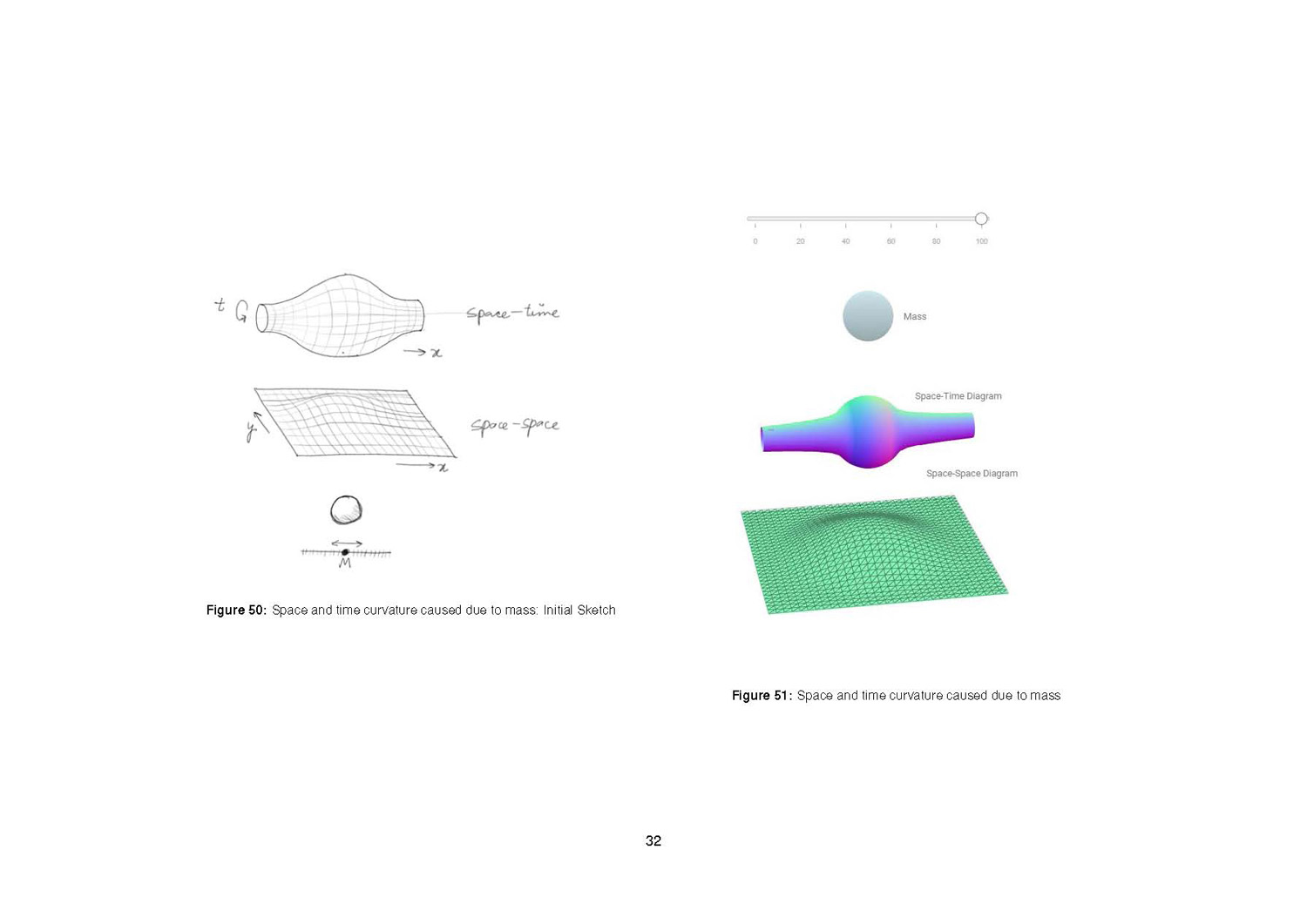

   - Visualising space and time curvature together

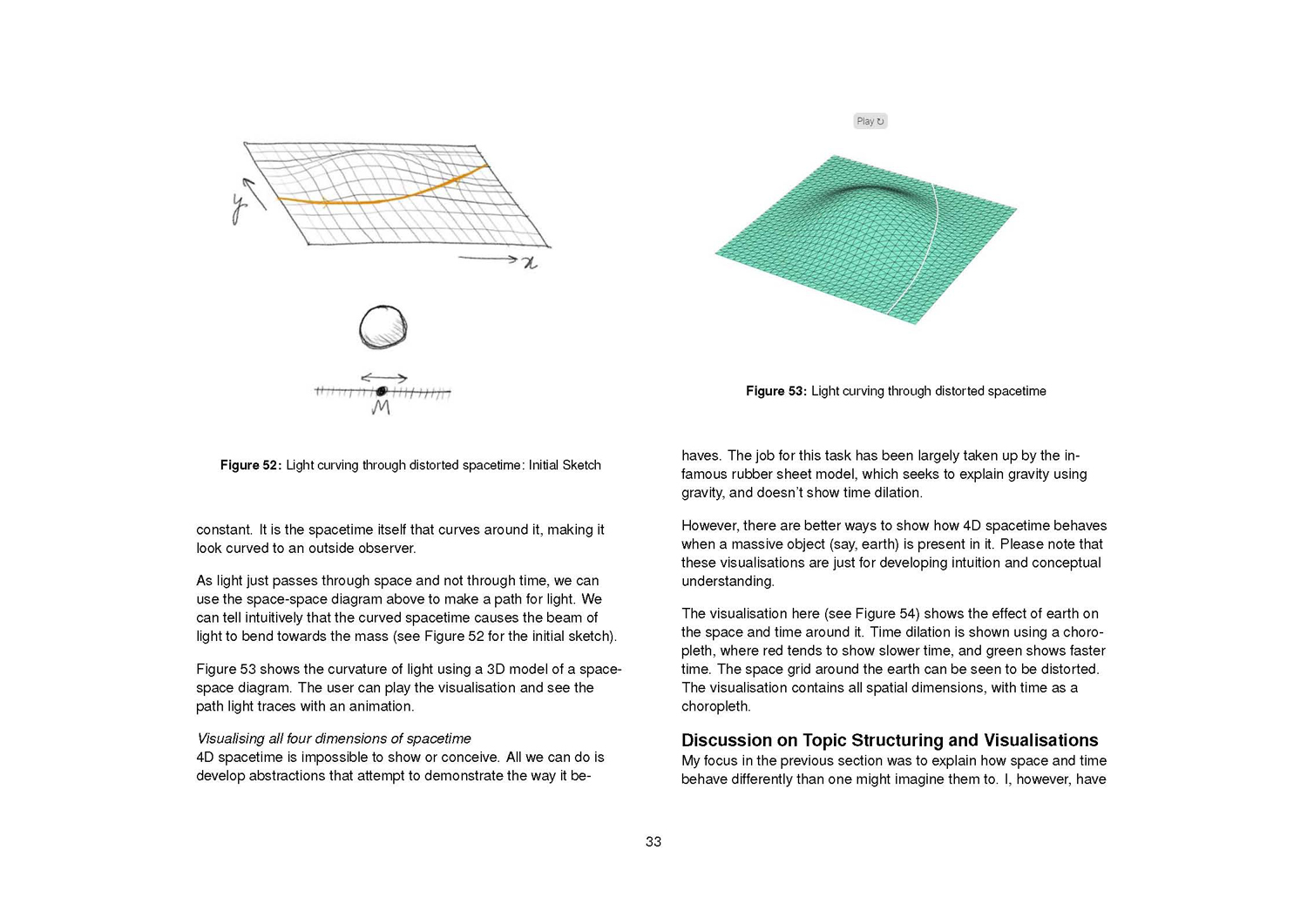

   - Light curves in gravitational fields

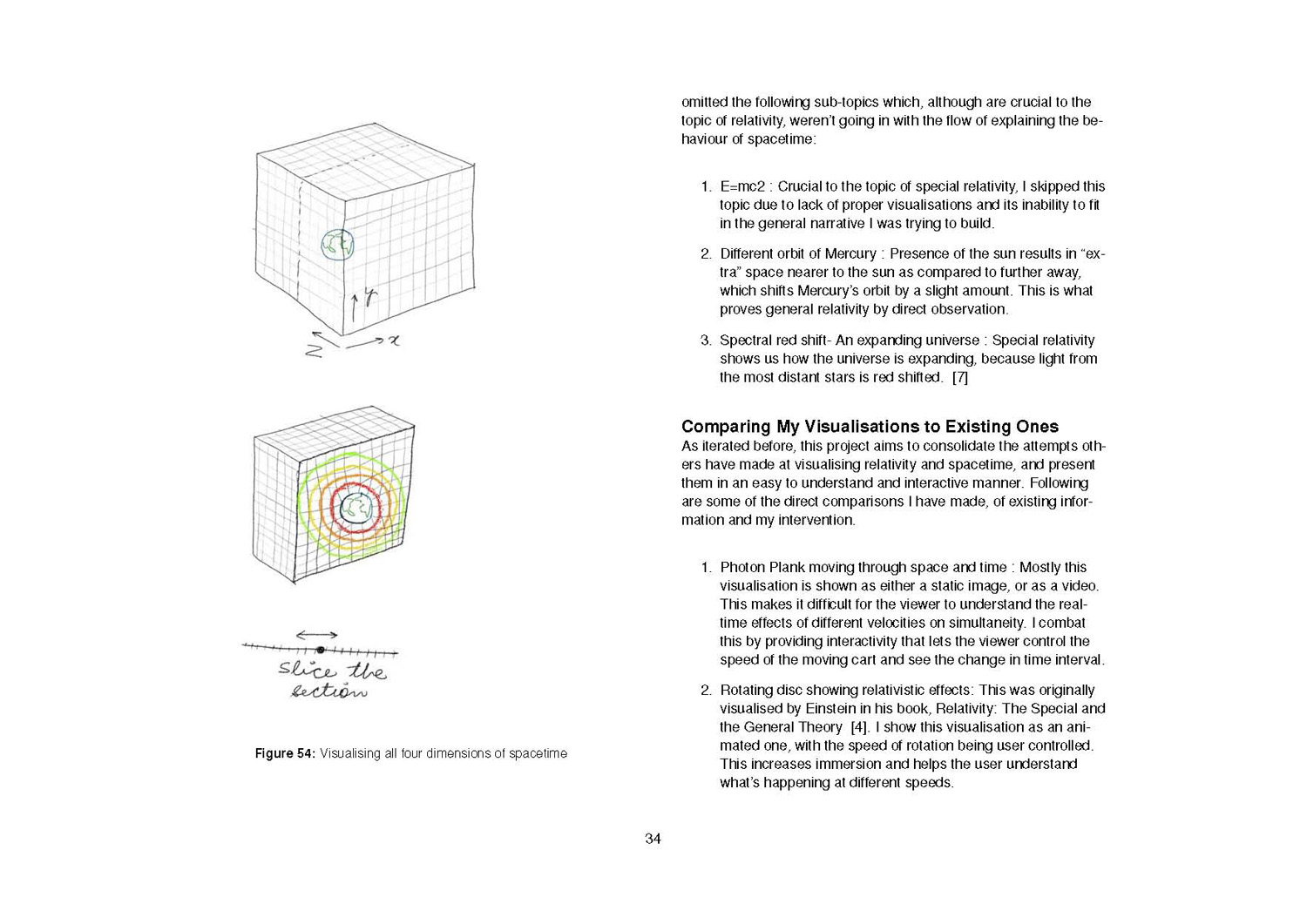

   - Visualising all four dimensions of spacetime
