In sheet metal, there are only two processes often used. Fabrication and Forming. The designer at a broad level should know available manufacturing methods keeping in mind the production quantities. For low volume production CAPEX should preferably be avoided. Wherever possible, parts must be designed using general-purpose tooling rather than specialized tools.
1. Small Size Fabricated Parts
Capital Expenditure (CAPEX) vs Volume

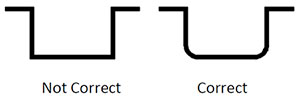

Example: High Volume Production
Investment on Forming Tool is justified.
Example: Low Volume Production
Investment in Forming Tool is not justified.
The manufacturing methods for fabrication and forming vary widely depending upon the size and complexity of parts. There is a wide range of machinery from simple manually operated fly presses to totally computerized machines to perform required duties. The designer in consultation with the production specialist should decide on the manufacturing options available to suit the design.
Sheet metal using an established CNC industry may not particularly be good for small parts. It may be expensive. However, in countries like India, there are many micro-scale industries that can cater to such requirements with makeshift tools and equipment. They may be adapted to test prototypes though compromising on tolerances a bit. A manually operated fly press without electric power can surprisingly generate many interesting parts.
Large size fabricated parts however are made joining together different parts made by different methods into one part. Welding is more often used in large part fabrication although riveting and screwing are also frequently used. A designer must design the components keeping in mind the joints and the method of joinery. A designer should make provision for jigs and fixtures locations in consultation with production personnel and as to how to handle the part during and post-manufacturing.
Here again, simple forming operations can be achieved on manually operated power presses with makeshift tools. Tool designers can produce low-cost limited-use tools. They are useful to test joinery and to develop prototypes. Medium-sized power presses and CNC tooling can opt for precision production.

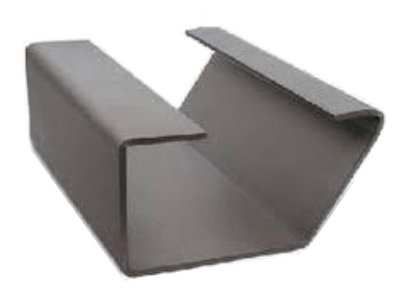

4. Medium Size Formed Parts
5. Large Size Formed Parts
Large formed parts need large machinery and expensive tooling. It is a capital expenditure process and demands high volumes to justify such expenditure. But once properly proven tooling is in place tens of thousands of parts can be produced. The cost of tooling will be amortized over the number of parts produced.
We have reviewed manufacturing processes in detail in “Chapter 3. Sheet Metal Manufacturing processes”. There are other processes available for the designer to opt for appropriate manufacturing methods. Designers must finally balance between quality, time, and cost.
